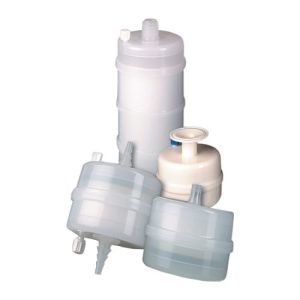

Polypropylene Media Capsule Filter, 3.0 Micron, 1/4"-1/2" Hose Barb Inlet&Outlet, EFA: 0.8sqft, OAL: 5.0in (CFAP0308LL)
Details
Polypropylene Media Capsule Filter, 3.0 Micron, 1/4"-1/2" Hose Barb Inlet&Outlet, EFA: 0.8sqft, OAL: 5.0in (CFAP0308LL)
Polypropylene Capsule Filter Applications:
- Etchants
- Photoresists
- Developers
- Solvents
- Acids
- Bases
- Fine Chemicals
- Vent/Process air filtration
Sterlitech Polypropylene filter capsules may be sanitized with a variety of commonly used chemical agents. The capsules may be repeatedly autoclaved for up to 5 cycles. Sterlitech certifies that the materials contained in its Polypropylene Capsule filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR.
Polypropylene Capsule Filter Product and Performance
Materials of Construction | |
Membrane: |
Hydrophobic Polypropylene |
Membrane Supports: |
Polypropylene Microfiber |
Housing: |
Polypropylene |
Cage, Core, End Caps: |
Polypropylene |
Fitting Connections: | MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb |
Dimensions (Nominal) | |
Lengths Available*: |
3.5 - 5.0" (9-13 cm) |
*Varies with connection styles |
7.6 - 9.1" (19-23 cm) |
11.5 - 13.0" (29-33 cm) |
|
Diameter: |
3.5 in (9 cm) |
Effective Filtration Area: |
0.8 ft² (748 cm²) / Small 3.0 ft² (2806 cm²) / Medium 5.9 ft² (5500 cm²) / Large |
Operating Conditions | |
Max Operating Pressure: | 80 psi (5.5 bar) @ 70ºF (21ºC) in Liquid, 55 psi (3.8 bar) @ 70ºF (21ºC) in Gas |
Max Differential Pressure: | 60 psi (4.1 bar) @ 70ºF (21ºC) |
Max Operating Temperature: |
110ºF (43ºC) at ≤30 psi (2.1 bar) Operating Pressure |
Autoclave: | Up to 5 Cycles. 30 minutes @ 121ºC |
Polyethersulfone Capsule Filter General Specifications
Fitting Connections | MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb |
End Fitting | 1/4" Barb, 1.5" Sanitary Flange, 1/2" NPTM, 1/4" Barb, 1/4" NPTM, 3/8" Barb |
End Fittings | Polypropylene Microfiber |
Diameter | 9 cm (3.5 in) |
Max Operational Temp | 43 °C (110 °F) at 2.1 bar (30 psi) |
Max Operational Pressure | 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F) |
Max Differential Pressure | 4.1 bar (60 psi) @ 21°C (70°F) |
Autoclave | Up to 5 x 30 min. cycles at 121 °C |
