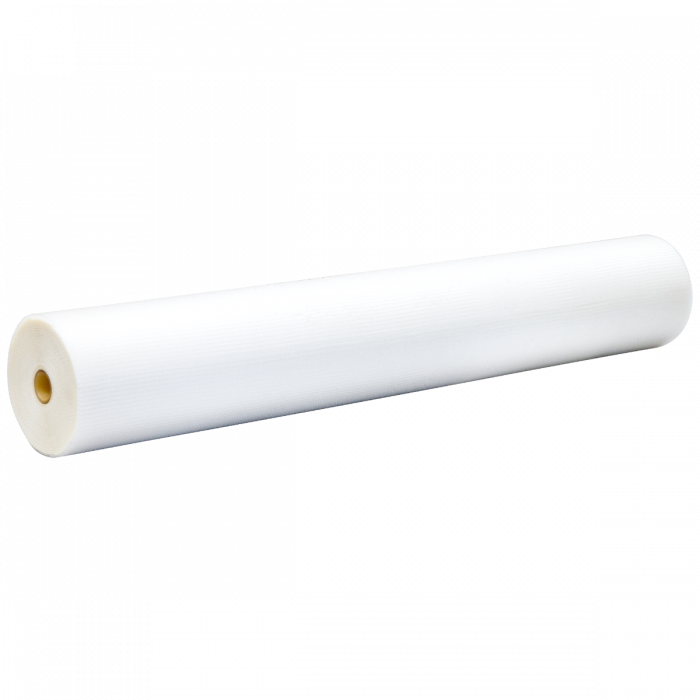

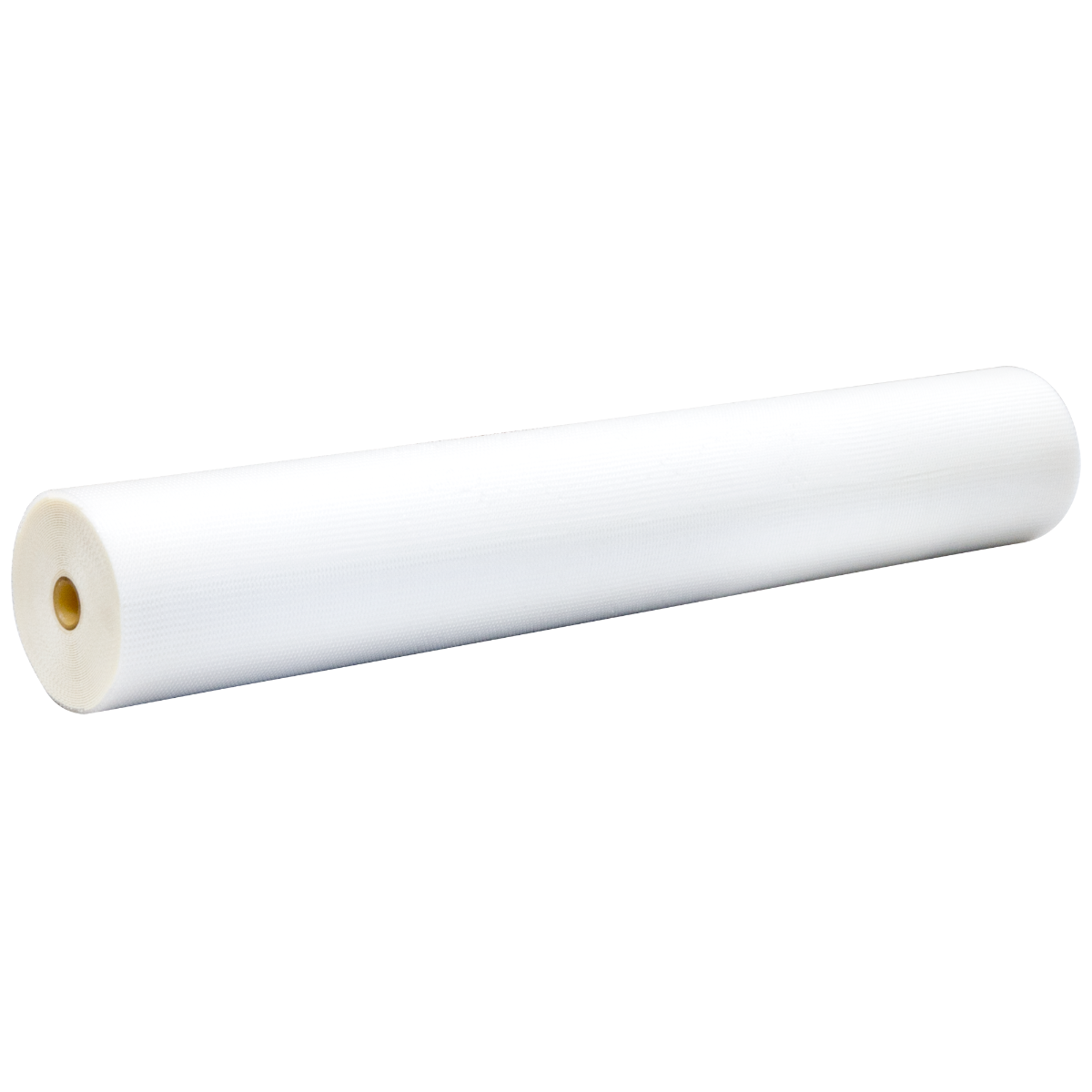

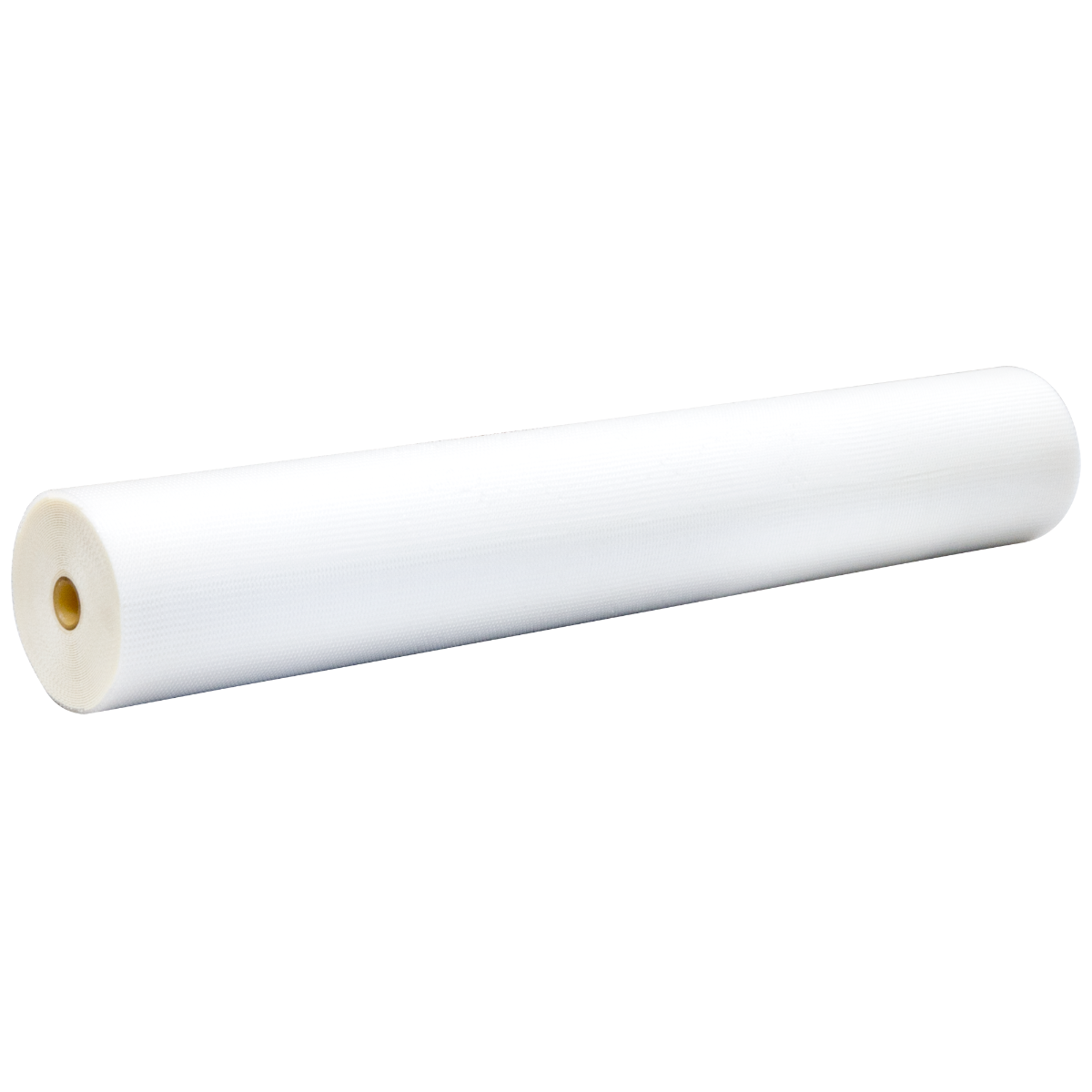

Ultrafiltration (UF) Elements
Spiral wound UF membrane elements are perfect for mimicking operating conditions that are representative of full size ultrafiltration membrane filtration systems.
Specifications
UF 1812 Element Performance Comparison by Manufacturer:
TriSep™ UF 1812 Element Specifications
General
Type: Female
pH Range (25°C): 3-10
Max. Pressure: 600 psi
Spacer: 31 mil
Wrap Type: Sanitary
Max. Operating Temp: 50°C (122°F)
Performance by Model
| Series |
|
|
|
|
|---|---|---|---|---|
| Cl Tolerence | <0.1 ppm | Variable | Variable | Variable |
| Polymer | Polypiperazine-amide | - | - | PES |
| Flux (gfd/psi) | 35/110 | - | - | 100/20 |
| MWCO (Da) | 3,500 | 10,000 | - | 100,000 |
| Membrane Area (ft2) | 4.0 ft2 |
SUEZ (GE)™ UF 1812 Element Specifications
General
Type: Female
Spacer: 32 mil
Wrap Type: Durasan* Cage
Max. Operating Temp: 50°C (122°F)
Performance by Model
| Series |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| pH Range (25°C) | 2-10 | 2-10 | 2-10 | 3-10 | 3-10 | 3-10 |
| Cl Tolerence | 20-50 ppm.days | 20-50 ppm.days | 20-50 ppm.days | 5,000 ppm.days | 5,000 ppm.days | 5,000 ppm.days |
| Max. Pressure (psi) | 400 | 400 | 400 | 200 | 200 | 100 |
| Polymer | PA | PA | PA | PES | PES | PAN |
| Flux (gfd/psi) | 18/400 | 20/150 | 17/75 | 90/50 | 85/30 | 176/20 |
| MWCO (Da) | 1,000 | 2,000 | 3,000 | 5,000 | 10,000 | 50,000 |
| Membrane Area (ft2) | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 |
Synder™ UF 1812 Element Specifications
General
Type: Female
pH Range (25°C): 3-9
Max. Pressure: 120 psi
Spacer: 31 mil
Wrap Type: Net
Max. Operating Temp: 55°C (131°F)
Cl Tolerence: <0.1 ppm (<30 min.)
Performance by Model
| Series |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| Polymer | PES | PES | PES | PES | PES | PES | PES | PES | PES |
|
Flux |
75-80/50 | 110-127/50 | 120-147/50 | 130-167/50 | 147/60 | 181-193/50 | 185-200/50 | 176-270/60 | 242-276/50 |
| MWCO (Da) | 1,000 | 3,000 | 5,000 | 10,000 | 20,000 | 30,000 | 50,000 | 50,000 | 200,000 |
| Membrane Area (ft2) | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | - | 3.6 ft2 |
| Series |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| Polymer | PES | PES | PAN | PAN | PAN | PVDF | PVDF | PVDF | PVDF |
|
Flux |
242-276/50 | 236-252/30 | 130-160*15 | 70-100/15 | 45-75/15 | 200-214/50 | 162-173/30 | 181-193/30 | 191-214/30 |
| MWCO (Da) | 200,000 | 300,000 | 400,000 | 100,000 | 30,000 | 50,000 | 100,000 | 250,000 | 500,000 |
| Membrane Area (ft2) | 3.6 ft2 | 3.6 ft2 | 2.7 ft2 | 2.7 ft2 | 2.7 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 2.7 ft2 |
