Spiral wound MF membrane elements are perfect for mimicking operating conditions that are representative of full size microfiltration membrane filtration systems.
| SKU | Product Name | Manufacturer | Designation | Polymer | Size | Pack Size | Est Ship | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1180012 | TriSep 1812 Sanitary Element, UB70, MF, Female, 31mil Spacer | TriSep | UB70 | 1.8 x 12 in. | 1 | Contact Us |
$334.08
|
||

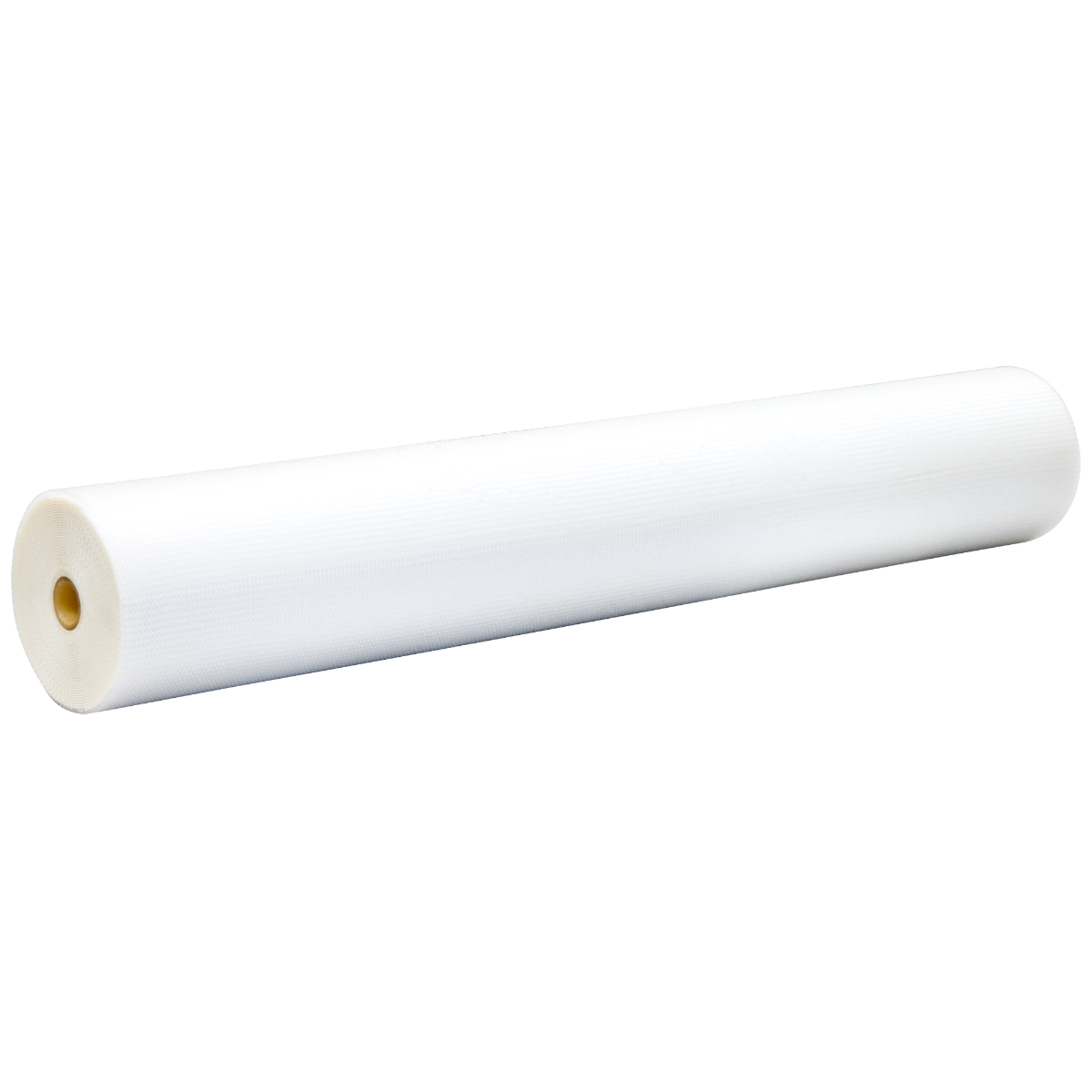

| 1180053 | Synder 1812 Sanitary Element, FR, MF, Female, 31mil Spacer | Synder | FR | 1.8 x 12 in. | 1 | Contact Us |
$322.63
|
||
| 1180054 | Synder 1812 Sanitary Element, V0.1, MF, Female, 31mil Spacer | Synder | V0.1 | PVDF | 1.8 x 12 in. | 1 | Contact Us |
$322.63
|
|

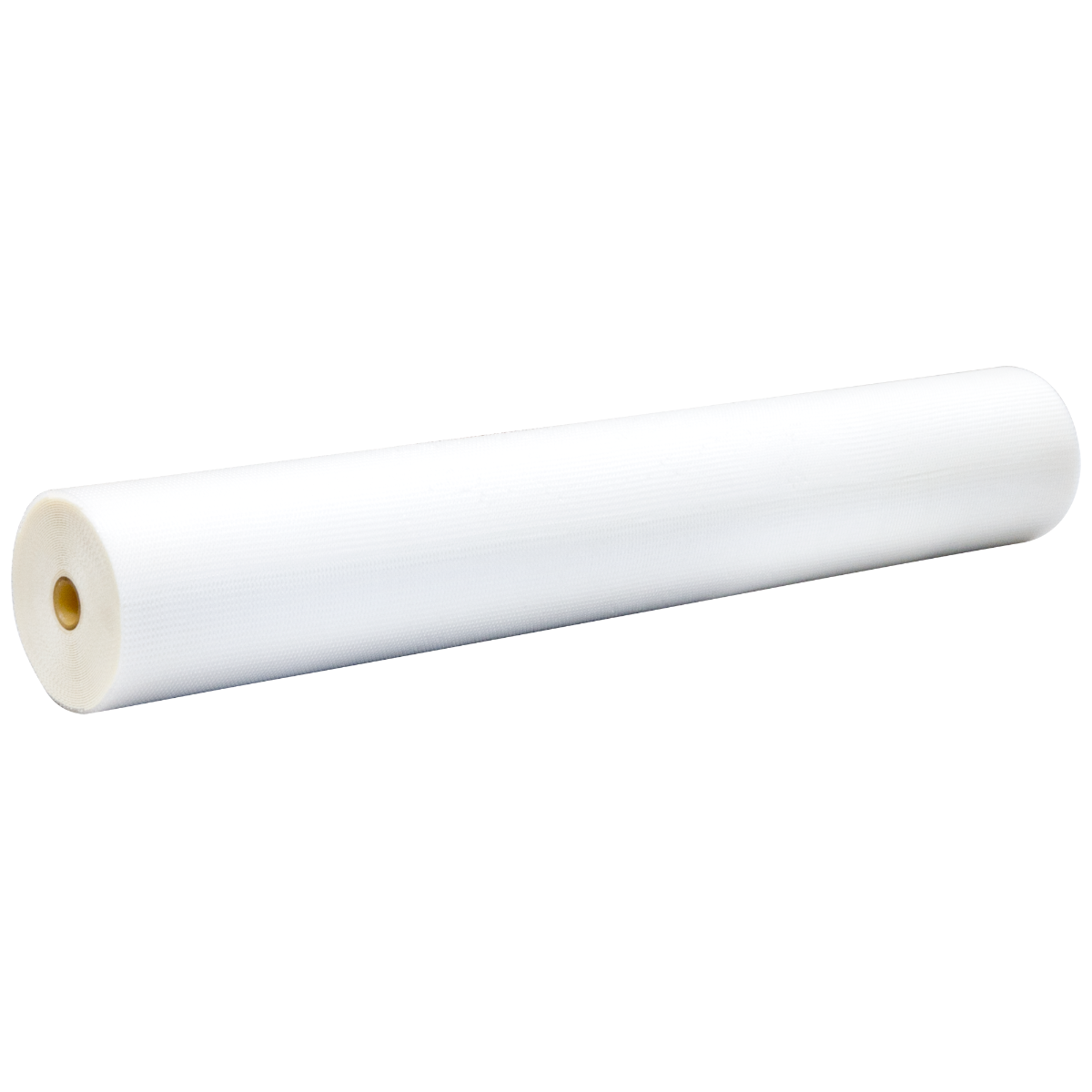

| 1180055 | Synder 1812 Sanitary Element, V0.2, MF, Female, 31mil Spacer | Synder | V0.2 | PVDF | 1.8 x 12 in. | 1 | Contact Us |
$322.63
|
|

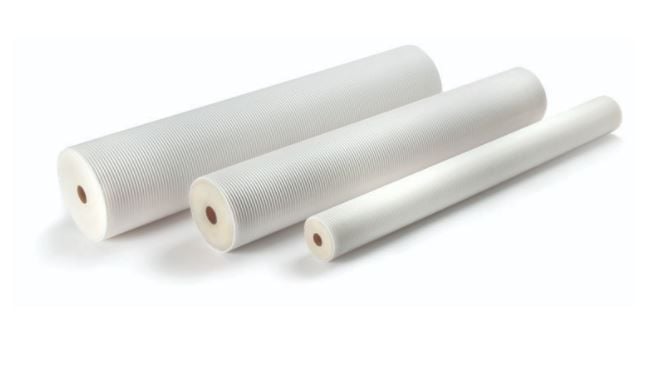

| 1180109 | Microdyn 1812 Sanitary Element, MP005, MF, Female, 31mil Spacer | Microdyn Nadir | MP005 | PES | 1.8 x 12 in. | 1 | Contact Us |
$334.08
|
Specifications
MF 1812 Element Specifications
General
Type: Female
Performance by Model
| Series |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Spacer | 31 mil | 31 mil | 32 mil | 31 mil | 31 mil | 31 mil | 31 mil |
| pH Range (25°C) | 3-10 | 3-10 | 3-10 | 3-10 | 3-9 | 3-9 | 1.0-12.0 |
| Cl Tolerence | <0.1 ppm | Variable | 5,000 ppm.days | <0.1 ppm (<30 min.) | <0.1 ppm (<30 min.) | <0.1 ppm (<30 min.) | Variable |
| Max. Temp. | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 55°C (131°F) | 55°C (131°F) | 55°C (131°F) | 50°C (122°F) |
| Wrap Type | Sanitary | Sanitary | Durasan* Cage | Net | Net | Net | Sanitary |
| Max. Pressure (psi) | 600 | 600 | 100 | 120 | 120 | 120 | 600 |
| Flux (gfd/psi) | 50/110 | 150/3 | 130/30 | - | 237-254/20 | 245-280/20 | - |
| Polymer | PVDF | - | PVDF | - | PVDF | PVDF | PES |
| MWCO | 0.22 µm | - | 0.3 µm | 800,000 Da | 0.1 µm | 0.22 µm | 0.05 µm |
| Membrane Area (ft2) | 2.5 ft2 | 4.0 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 |
