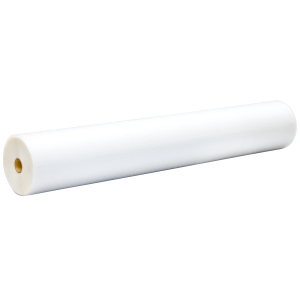

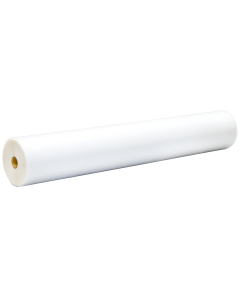

Synder 1812 Sanitary Element, FR, MF, Female, 31mil Spacer
SKU
1180053
Manufacturer
Synder
Manufacturer
Synder
Designation
FR
Size
1.8 x 12 in.
Pack Size
1
Details
Synder 1812 Sanitary Element, FR, MF, Female, 31mil Spacer
Specifications
UF 1812 Element Performance Comparison by Manufacturer:
TriSep™ UF 1812 Element Specifications
General
Type: Female
pH Range (25°C): 3-10
Max. Pressure: 600 psi
Spacer: 31 mil
Wrap Type: Sanitary
Max. Operating Temp: 50°C (122°F)
Performance by Model
Series | ||||
---|---|---|---|---|
Cl Tolerence | <0.1 ppm | Variable | Variable | Variable |
Polymer | Polypiperazine-amide | - | - | PES |
Flux (gfd/psi) | 35/110 | - | - | 100/20 |
MWCO (Da) | 3,500 | 10,000 | - | 100,000 |
Membrane Area (ft2) | 4.0 ft2 |
SUEZ (GE)™ UF 1812 Element Specifications
General
Type: Female
Spacer: 32 mil
Wrap Type: Durasan* Cage
Max. Operating Temp: 50°C (122°F)
Performance by Model
Series | ||||||
---|---|---|---|---|---|---|
pH Range (25°C) | 2-10 | 2-10 | 2-10 | 3-10 | 3-10 | 3-10 |
Cl Tolerence | 20-50 ppm.days | 20-50 ppm.days | 20-50 ppm.days | 5,000 ppm.days | 5,000 ppm.days | 5,000 ppm.days |
Max. Pressure (psi) | 400 | 400 | 400 | 200 | 200 | 100 |
Polymer | PA | PA | PA | PES | PES | PAN |
Flux (gfd/psi) | 18/400 | 20/150 | 17/75 | 90/50 | 85/30 | 176/20 |
MWCO (Da) | 1,000 | 2,000 | 3,000 | 5,000 | 10,000 | 50,000 |
Membrane Area (ft2) | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 |
Synder™ UF 1812 Element Specifications
General
Type: Female
pH Range (25°C): 3-9
Max. Pressure: 120 psi
Spacer: 31 mil
Wrap Type: Net
Max. Operating Temp: 55°C (131°F)
Cl Tolerence: <0.1 ppm (<30 min.)
Performance by Model
Series | |||||||||
---|---|---|---|---|---|---|---|---|---|
Polymer | PES | PES | PES | PES | PES | PES | PES | PES | PES |
Flux |
75-80/50 | 110-127/50 | 120-147/50 | 130-167/50 | 147/60 | 181-193/50 | 185-200/50 | 176-270/60 | 242-276/50 |
MWCO (Da) | 1,000 | 3,000 | 5,000 | 10,000 | 20,000 | 30,000 | 50,000 | 50,000 | 200,000 |
Membrane Area (ft2) | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | - | 3.6 ft2 |
Series | |||||||||
---|---|---|---|---|---|---|---|---|---|
Polymer | PES | PES | PAN | PAN | PAN | PVDF | PVDF | PVDF | PVDF |
Flux |
242-276/50 | 236-252/30 | 130-160*15 | 70-100/15 | 45-75/15 | 200-214/50 | 162-173/30 | 181-193/30 | 191-214/30 |
MWCO (Da) | 200,000 | 300,000 | 400,000 | 100,000 | 30,000 | 50,000 | 100,000 | 250,000 | 500,000 |
Membrane Area (ft2) | 3.6 ft2 | 3.6 ft2 | 2.7 ft2 | 2.7 ft2 | 2.7 ft2 | 3.6 ft2 | 3.6 ft2 | 3.6 ft2 | 2.7 ft2 |
