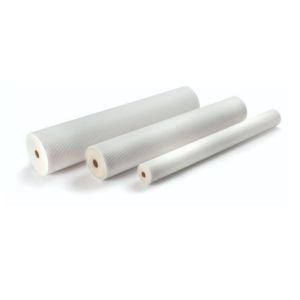

Microdyn 1812 Sanitary Element, MP005, MF, Female, 31mil Spacer
Powered by Bioz
1180109
Microdyn Nadir
MP005
PES
1.8 x 12 in.
1
Contact Us
MF Element Specifications
General
Type: Female
Performance by Model
| Series |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Spacer | 31 mil | 31 mil | 32 mil | 31 mil | 31 mil | 31 mil | 31 mil |
| pH Range (25°C) | 3-10 | 3-10 | 3-10 | 3-10 | 3-9 | 3-9 | 1.0-12.0 |
| Cl Tolerence | <0.1 ppm | Variable | 5,000 ppm.days | <0.1 ppm (<30 min.) | <0.1 ppm (<30 min.) | <0.1 ppm (<30 min.) | Variable |
| Max. Temp. | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 55°C (131°F) | 55°C (131°F) | 55°C (131°F) | 50°C (122°F) |
| Wrap Type | Sanitary | Sanitary | Durasan* Cage | Net | Net | Net | Sanitary |
| Max. Pressure (psi) | 600 | 600 | 100 | 120 | 120 | 120 | 600 |
| Flux (gfd/psi) | 50/110 | 150/3 | 130/30 | - | 237-254/20 | 245-280/20 | - |
| Polymer | PVDF | - | PVDF | - | PVDF | PVDF | PES |
| MWCO | 0.22 µm | - | 0.3 µm | 800,000 Da | 0.1 µm | 0.22 µm | 0.05 µm |
Check out other related products below!
More Choices:
Frequently Asked Questions
Q: What is the recommended range of cross flow velocity in commercially available spiral wound elements?
Crossflow velocity limits for commercially available spiral-wound membrane elements depend on several factors, including element construction, maximum allowable pressure drop, and feed stream characteristics (such as viscosity and solids content). Recommended operating ranges are typically provided by the element manufacturer. For application-specific guidance, please contact Sterlitech for assistance in selecting appropriate crossflow velocities and operating conditions.
Q: Can I use microfiltration membrane disk filters in the stirred cells?
Yes, you can use almost all microfiltration membrane disk filters in the stirred cells. The only exception are the ceramic membrane disk filters; these are too thick to fit in the stirred cells.
