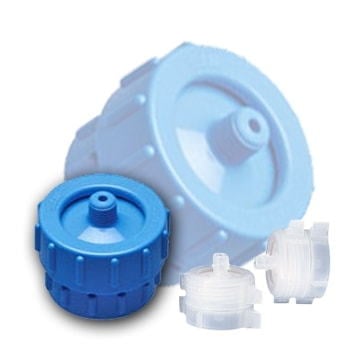

Plastic Filter Holders
Plastic in-line filters holders present an economical alternative to stainless steel for lower pressure applications. These products are constructed of polypropylene or PFA; compatible with a wide-range of chemicals/temperatures and autoclavable at 121 °C (250 °F) for 20 minutes (slow exhaust).
SKU | Product Name | Diameter (mm) | Material Type | Model | Est Ship | Price | ||
---|---|---|---|---|---|---|---|---|
520100 | Swinnex, polypropylene, 13mm Filter Holder (5/Pk) | 13 | Polypropylene | 1-2 days | $142.33 | |||

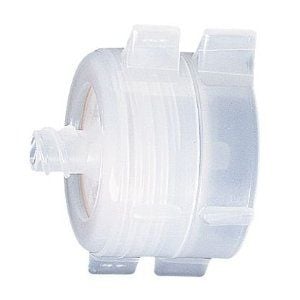

43303010 | PP 25, Polypropylene In-Line & Aerosol Holder, 25mm, 6/pk | 25 | Polypropylene | 5-7 days | $80.40 | |||
43307020 | PFA 47, PFA In-Line Filter Holder, 47mm | 47 | PFA | 5-7 days | $297.87 | |||
43307010 | PFA 25, PFA In-Line Filter Holder, 25mm | 25 | PFA | 5-7 days | $128.00 | |||
43305010 | PPO 47, Polypropylene In-Line and Aerosol Holder, 47mm | 47 | Polypropylene | 5-7 days | $57.49 | |||
43303020 | PP 47, Polypropylene In-Line and Aerosol Holder, 47mm | 47 | Polypropylene | 5-7 days | $50.66 | |||
540100A | PP 25 In-Line & Aerosol Holder, 25mm, Polypropylene, 1/Pk | 25 | Polypropylene | 5-7 days | $22.98 | |||
520100a | Swinnex, polypropylene, 13mm Filter Holder | 13 | Polypropylene | 1-2 days | $30.57 |
Accessory
SKU | Product Name | Pack Size | Price | ||
---|---|---|---|---|---|
1500003 | Swinnex, Silicone, 13mm Replacement Gaskets, 5/Pk | 5 | $10.40 | ||
540106-A | Inlet cap O-ring (silicone) 12/pack | $45.24 | |||
540108 | Polypropylene Inline holder (540100) Replacement Inlet cap O-ring (EPR) | $3.33 | |||
540107 | Viton O-ring PP25 | $5.23 | |||
540106 | Inlet cap O-ring (silicone) 1/pack | $4.16 | |||
530206 | O-ring PFA25, 2/pk | $161.22 | |||
530204 | PFA25 Support Screen | $39.50 | |||
44530202 | PFA-25 Inlet Cap | $20.83 | |||
530111 | Inlet/Outlet Nut for PFA 47, 4/Pk | $132.83 | |||
530110 | Inlet/Outlet Ferrule, 4/pk | $118.45 | |||
44501204 | Silicone O-ring PP-47, Inlet/Locking Ring, 1/Pk | $37.81 | |||
44530102 | Inlet Cap, PFA 47 | $35.22 | |||
530104 | PFA Support Screen PFA47 | $105.00 | |||
530105 | Vent Cap, PFA 47 | $20.94 | |||
530108 | Viton O-ring PP/PFA47 | $7.76 | |||
530109 | EPR O-ring PP-47 | $4.24 |
Applications
- Low pressure filtration (<71 psi for PP, <42 psi for PFA)
- Ultraclean and sterilize liquids
- Aseptic sampling of liquids or gases at point-of-use
- Environmental air sampling (PPO 47*)
- Syringe filter holders:
- Biofluids, ophthalmics, gas chromatography samples, and dust-free lubricants
- Particulate and microorganism removal from small samples (≤5ml)
Specifications
|
||||||
---|---|---|---|---|---|---|
Filter size (mm) |
13 |
25 |
47 |
25 |
47 |
47 |
Body |
Polypropylene |
PFA |
PFA |
Polypropylene |
||
O-rings/ |
Silicone |
Perfluoroelastomer |
Perfluoroelastomer |
Silicone |
Silicone |
Silicone, PTFE |
Inlet/Outlet |
Female luer lock |
Female luer lock |
Combo ¼” NPTM |
Female luer lock |
Combo ¼” NPTM, |
Open face/ combo ¼” |
Max Pressure Diff. (psi) |
≤40 |
≤42 |
≤42 |
≤71 |
≤71 |
N/A |
Filtration Area (cm2) |
0.7 |
3.5 |
13.5 |
3.5 |
13.5 |
13.5 |
