PVC Manifolds

PVC vacuum manifolds are lightweight, portable, and offer resistance to acids and bases. Standard cup models accepts #8 or #8b stopper, while exterior taper cups accept glass funnels with 40/35 ground glass joints. Choose between 2 or 3-way valves; 3-way has a luer slip vent port to accept disposable syringe filters or relieve vacuum on attached funnel.

These models are not suitable for autoclave sterilization, and instead should be sanitized with compatible chemicals.

SKUProduct Name Material Type Cup Valve Est Ship Price
PVC Vacuum Manifold, 6-Position, Standard Cup, 2-Way Valve, KMP6 313600 PVC Vacuum Manifold, 6-Position, Standard Cup, 2-Way Valve, KMP6 PVC 2-Way 3-4 weeks
$2,209.31

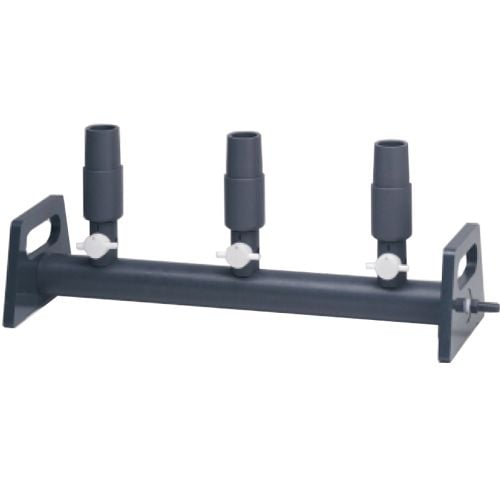

PVC Vacuum Manifold, 3-Position, Exterior Taper Cup, 3-Way Valve, KMX3 373330 PVC Vacuum Manifold, 3-Position, Exterior Taper Cup, 3-Way Valve, KMX3 PVC 3-Way 3-4 weeks
$1,323.02
PVC Vacuum Manifold, 3-Position, Standard Cup, 2-Way Valve, KMP3 313400 PVC Vacuum Manifold, 3-Position, Standard Cup, 2-Way Valve, KMP3 PVC 2-Way 3-4 weeks
$1,446.07
Out of stock
Request a Quote
PVC Vacuum Manifold, 1-Position, Exterior Taper Cup, 3-Way Valve, KMX1 373130 PVC Vacuum Manifold, 1-Position, Exterior Taper Cup, 3-Way Valve, KMX1 PVC 3-Way 5-7 days
$486.50
per page
Set Descending Direction

Accessory

SKUProduct Name Material Type Price
373015 Socket Cap Screw for PVC Handles PVC
$1.20
373412 PVC Pipe Plug (1/4" Plug T PVC SCH 80) PVC
$16.34
373411 PVC Hose Barb, 1/4in to Barb PVC
$16.34
713010 PVC Male Taper, 40/35 PVC
$101.70
373017 O-ring for PVC Manifold PVC
$1.20
373430 3 Way Valve, PTFE, PVC Body PVC
$118.92
373018 EPR Gasket for New PVC Manifold PVC
$5.50
373103 PVC Main Manifold, Single Station PVC
$172.91
373401 Wide base PVC Handle PVC
$102.71
313430 Stopcock Set (PVC) PVC
$100.88
313015b Handle set screw PVC
$1.14
313401 Handle KMP3 (6) PVC PVC
$178.98
313410 Replacement Standard Cup Funnel Holder for PVC Manifold PVC
$100.88
313403 Main Manifold KMP3 PVC PVC
$313.14
313603 Main Manifold KMP6 PVC PVC
$640.85
373303 PVC Main Manifold, 3 Place Extra Long PVC
$282.92

Applications

  • Multiple sample filtration
  • Ideal for EPA Method 1664: Oil & Grease Analysis
  • Detecting and enumerating bacteria using EPA membrane filter (MF) technique

Specifications



KMX1

KMX1

KMX3

KMX3

KMP3

KMP3

KMP6

KMP6

Number of stations

1

3

3

6

Body & branches

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Valves

PTFE stopcock, PVC body

PTFE stopcock, PVC body

PTFE stopcock, PVC body

PTFE stopcock, PVC body

Cup type

Exterior taper

Exterior taper

Standard

Standard

Outlet

¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing)

¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing)

¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing)

¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing)

Max Temp.

60 C (140 F)

60 C (140 F)

60 C (140 F)

60 C (140 F)

Distance between stations

N/A

6.5”

5.5”

4.75”

Documentation

Documentation

Data Sheet: PVC Manifolds
