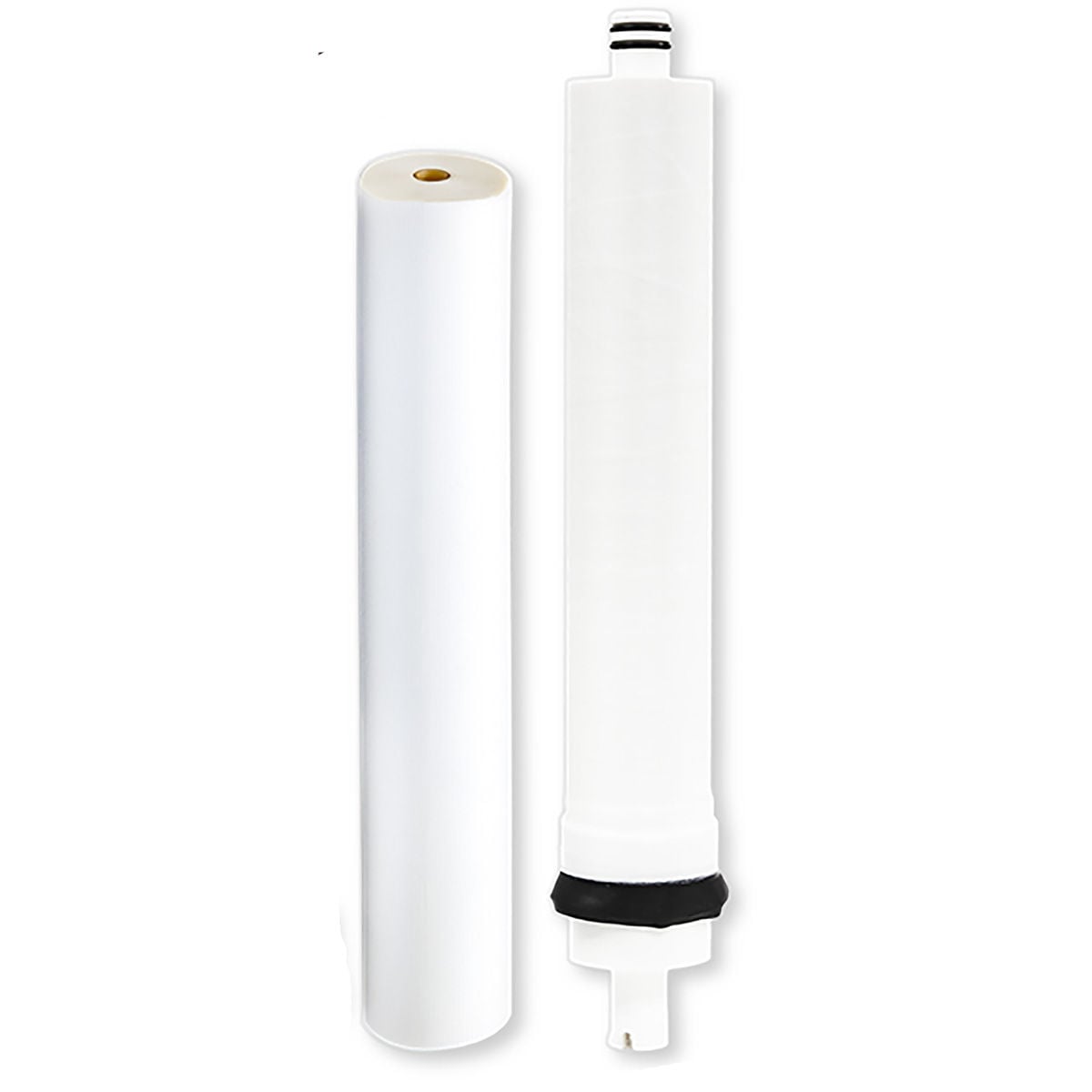

Nanofiltration (NF) Elements
Spiral wound NF membrane elements are perfect for mimicking operating conditions that are representative of full size nanofiltration membrane filtration systems.
| SKU | Product Name | Manufacturer | Designation | Polymer | Size | Pack Size | Est Ship | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1180085 | TriSep 1812 Sanitary Element, SBNF, NF, Female, 31mil Spacer | TriSep | SBNF | Cellulose Acetate | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180084 | TriSep 1812 Sanitary Element, SB90, NF, Female, 31mil Spacer | TriSep | SB90 | Cellulose Acetate | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180006 | TriSep 1812 Sanitary Element, TS80, NF, Female, 31mil Spacer | TriSep | TS80 | Polyamide-TFC | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180005 | TriSep 1812 Sanitary Element, TS40, NF, Female, 31mil Spacer | TriSep | TS40 | Polypiperazine-amide | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180004 | TriSep 1812 Sanitary Element, XN45, NF, Female, 31mil Spacer | TriSep | XN45 | Polypiperazine-amide | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180094 | Synder 1812 Industrial Element, NFX, NF, Male, 31mil Spacer | Synder Filtration | NFX | Polyamide-TFC | 1.8 x 12 In | 1 | Contact Us | $334.08 | |
| 1180059 | Synder 1812 Sanitary Element, NFG, NF, Female, 31mil Spacer | Synder | NFG | Polyamide-TFC | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |

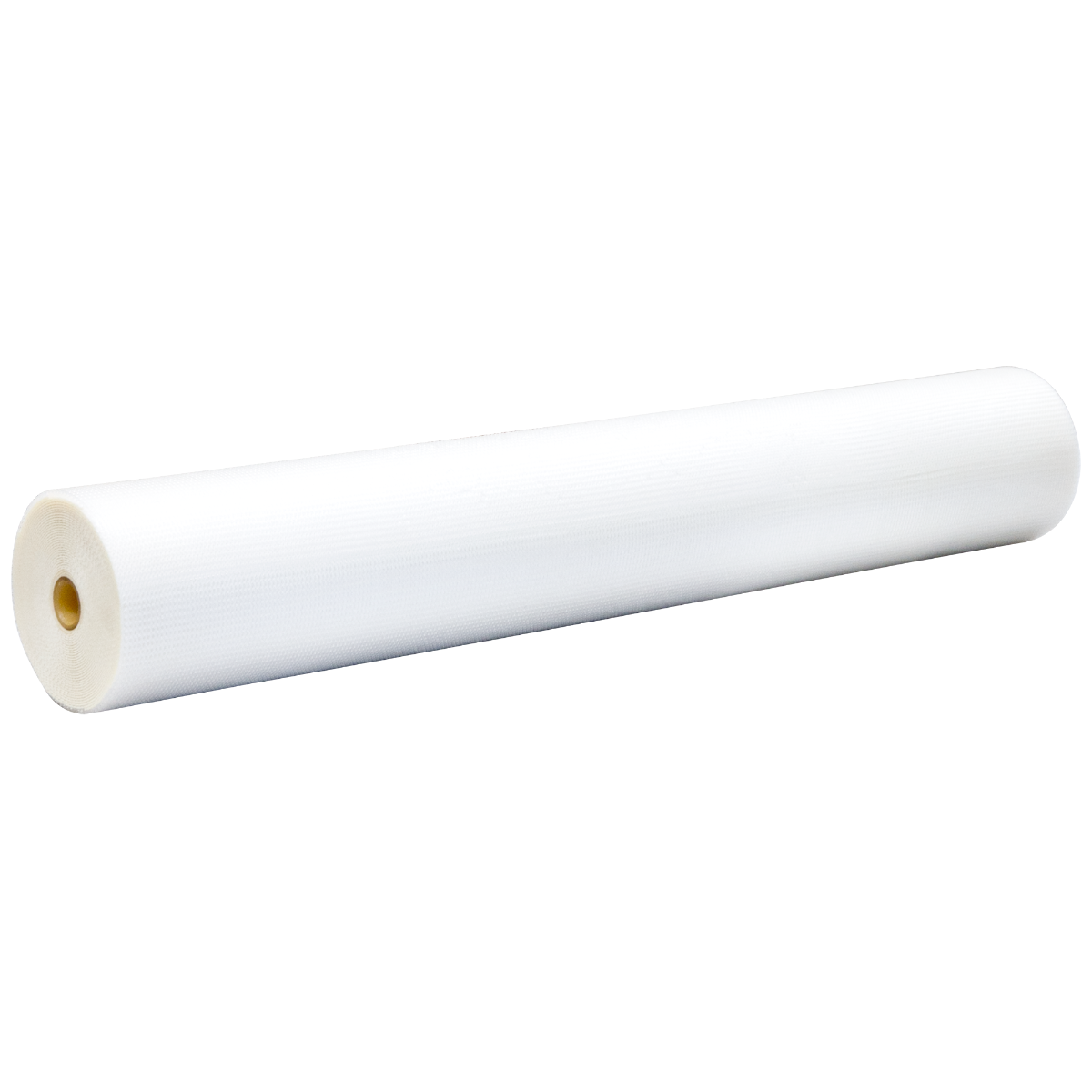

| 1180058 | Synder 1812 Sanitary Element, NFW NF, Female, 31mil Spacer | Synder | NFW | Polyamide-TFC | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180057 | Synder 1812 Sanitary Element, NFX, NF, Female, 31mil Spacer | Synder | NFX | Polyamide-TFC | 1.8 x 12 in. | 1 | Contact Us | $334.08 | |
| 1180030 | Veolia 1812 Sanitary Element, Duracid NF, Female, 32mil Spacer | Suez | Duracid | Polyamide-TFC | 1.8 x 12 in. | 1 | 3-4 weeks | $490.25 | |
| 1180029 | Veolia 1812 Sanitary Element, DL, NF, Female, 32mil Spacer | Suez | DL | Polyamide-TFC | 1.8 x 12 in. | 1 | 3-4 weeks | $296.25 | |

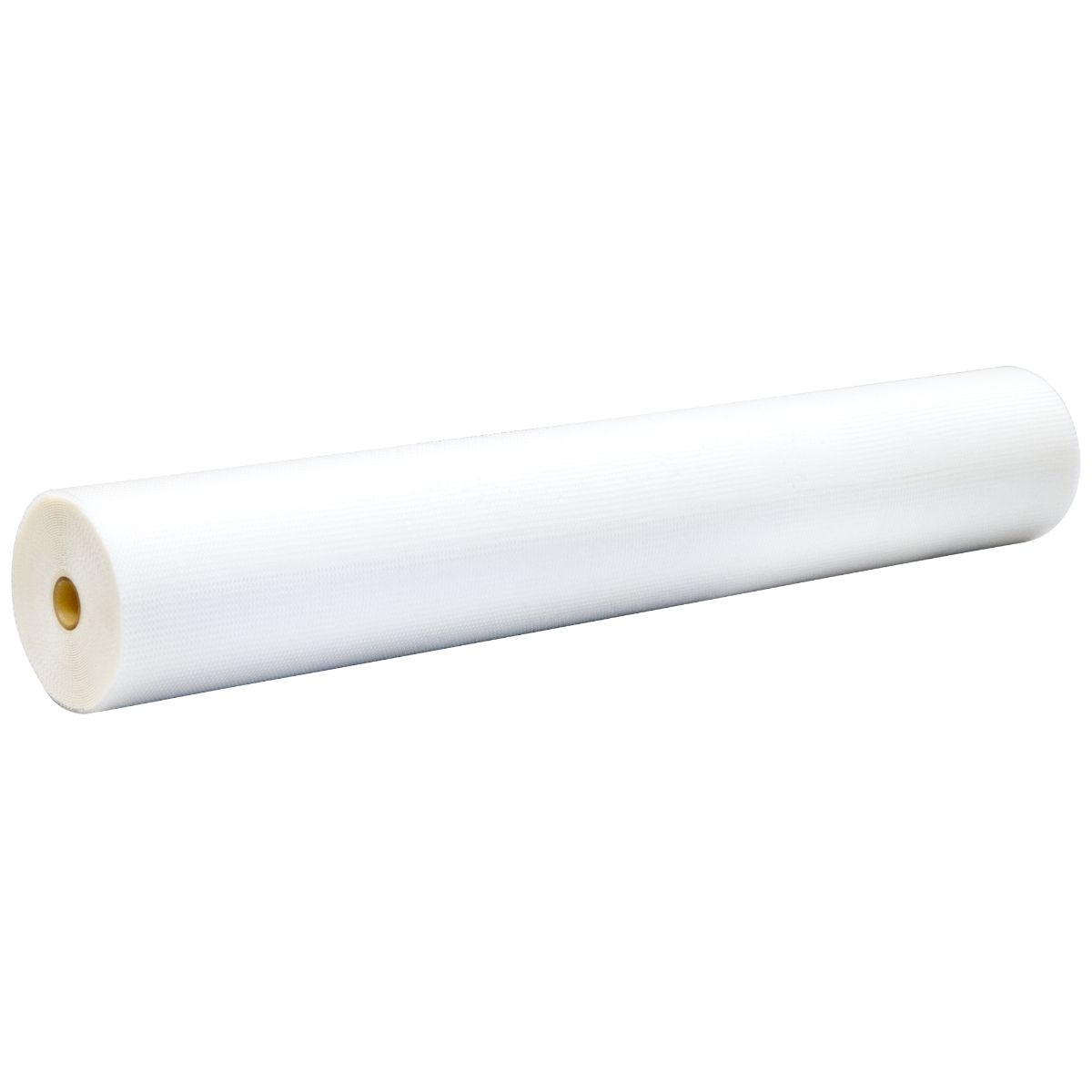

| 1180028 | Veolia 1812 Sanitary Element, DK, NF, Female, 32mil Spacer | Suez | DK | Polyamide-TFC | 1.8 x 12 in. | 1 | 3-4 weeks | $296.25 |
Specifications
NF 1812 Element Specifications
General
Type: Female
Max. Pressure: 600 psi
Performance by Model
| Series |
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spacer | 31 mil | 31 mil | 31 mil | 32 mil | 32 mil | 32 mil | 31 mil | 31 mil | 31 mil | - | - |
| pH Range (25°C) | 3-10 | 3-10 | 3-10 | 3-9 | 3-9 | 0-9 | 3-9.5 | 4-9 | 4-9 | 2-7.5 | 2-7.5 |
| Cl Tolerence | <0.1 ppm | <0.1 ppm | <0.1 ppm | 500 ppm.hrs | 500 ppm.hrs | 500 ppm.hrs | 500 ppm.hrs | 500 ppm.hrs | 500 ppm.hrs | 0.5 ppm (1 ppm max) | 0.5 ppm (1 ppm max) |
| Max. Temp. | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 70°C (158°F) | 50°C (122°F) | 50°C (122°F) | 50°C (122°F) | 32°C (90°F) | 32°C (90°F) |
| Wrap Type | Sanitary | Sanitary | Sanitary | Durasan* Cage | Durasan* Cage | Durasan* Cage | Net | Net | Net | Sanitary | Sanitary |
| Polymer | Polypiperazine-amide | Polypiperazine-amide | PA | PA | PA | PA | PA | PA | PA | CA | CA |
| Flux (gfd/psi) | 35/110 | 20/110 | 20/110 | 22/100 | 28/220 | 10-19/225 | 20-25/110 | 45-50/110 | 55-60/110 | - | - |
| Rejection MgSO4 (NaCl) | 95% (10-30%) | 90% (40-60%) | 99% (80-90%) | 96% | 98% | 98% | 99% (40%) | 97% (20%) | 50% (10%) | NA (50%) | NA (85%) |
| MWCO (Da) | 500 | 200 | - | 150-300 | 150-300 | 150-200 | 150-300 | 300-500 | 600-800 | 2000 | 1000-2000 |
| Membrane Area (ft2) | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 | 4.0 ft2 |
