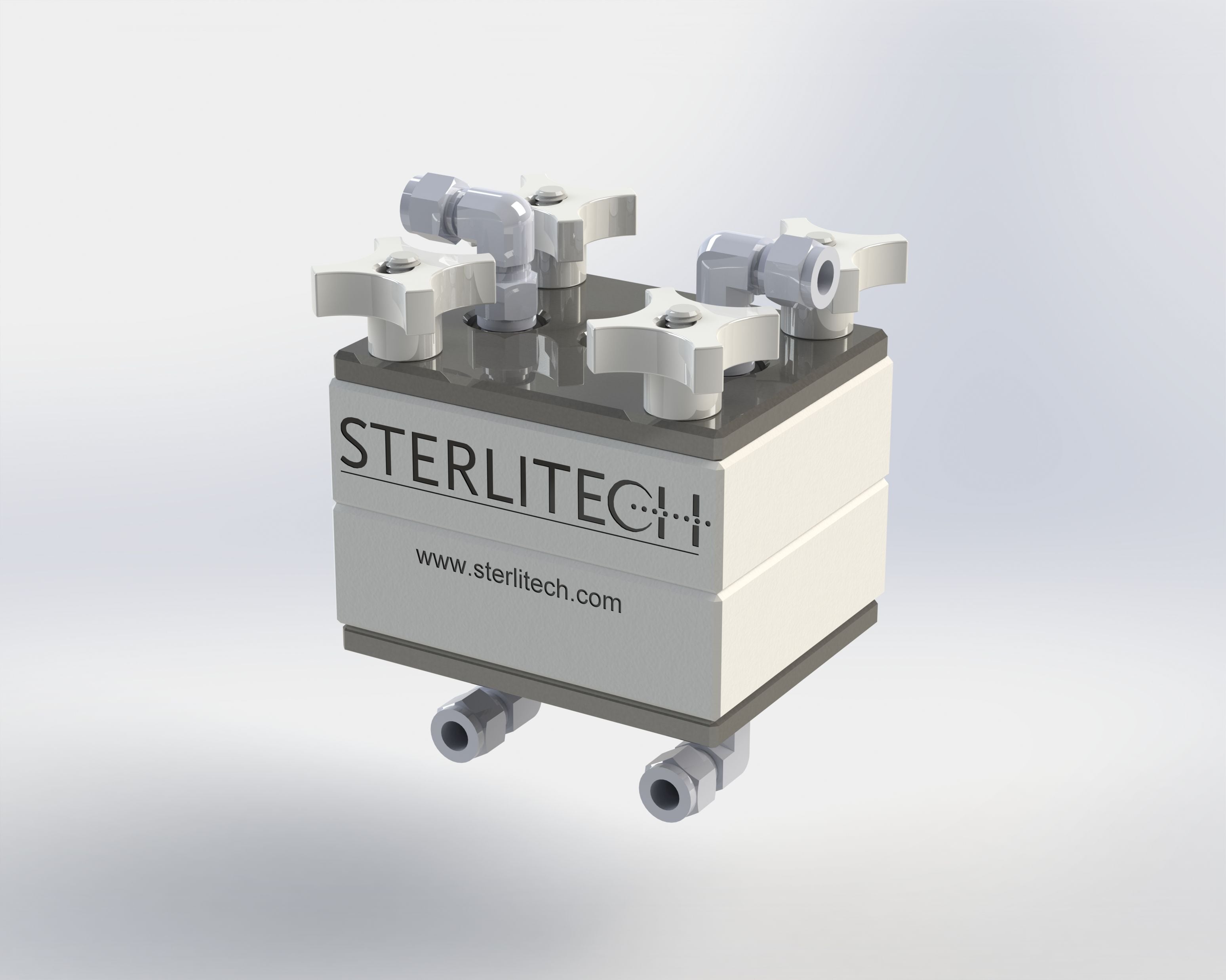

The CF042- FO Cell is a laboratory-scale filtration unit that is designed to evaluate a variety of Osmotically Driven Membrane Processes (ODMP), including Forward Osmosis (FO) and Pressure Retarded Osmosis (PRO). Available in five different materials for chemical compatibility or for applications requiring visual investigation of hydrodynamic conditions or local fouling intensity. All cells are compatible with our kits, benchtop systems, and skid systems.
Interested in learning how to operate our membrane process equipment? Check out our MPD channel to watch videos now!
CF042-FO Cell Features and Benefits:
- Accepts polymeric flat sheet membrane coupons
- Mimics both laminar or turbulent flow conditions
- Provides fast and accurate performance data
- Offers judicious membrane use with small membrane active area
SKU | Product Name | Est Ship | Price | ||
---|---|---|---|---|---|
1160239 | CF042 Cell Assembly, Forward Osmosis, Acetal Copolymer (Delrin) (CF042D-FO) | 1-2 days | $1,110.51 | ||
1160237 | CF042 Cell Assembly, Forward Osmosis, 316 SS (CF042SS-FO) | 1-2 days | $4,160.03 | ||
1160167 | CF042 Cell Assembly, Forward Osmosis, Acrylic (CF042A-FO) | 1-2 days | $1,354.24 | ||
1160255 | CF042 Cell Assembly, Forward Osmosis, PTFE (CF042P-FO) | 1-2 days | $1,225.81 | ||
1160268 | CF042 Cell Assembly, Forward Osmosis, Hastelloy (CF042H-FO) | Contact Us | $17,421.85 |
Accessory
Applications
Forward Osmosis technology is most commonly used for an array of wastewater recycling and water reclamation applications. Areas in which an FO cell may be used include:
- Water reclamation from oil and gas exploration
- Landfill wastewater
- Alternative energy/biogas wastewater
- Medical/dental wastewater
- Membrane bioreactors
- Seawater desalination
- Radioactive wastewater
- Carpet manufacturing wastewater
- Pressure Retarded Osmosis (PRO) to generate electricity
Other uses for Forward Osmosis Cells:
- Pretreatment for Reverse Osmosis procedure
- Concentrating juices (grape juice to wine, tomato paste)
- Pharmaceuticals
- Nutraceuticals
Specifications
Specifications by Material:

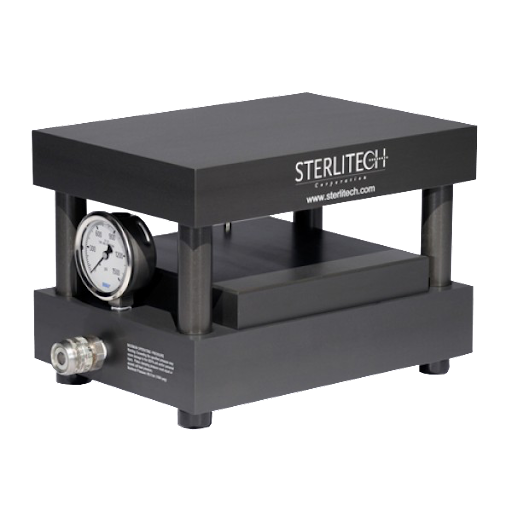

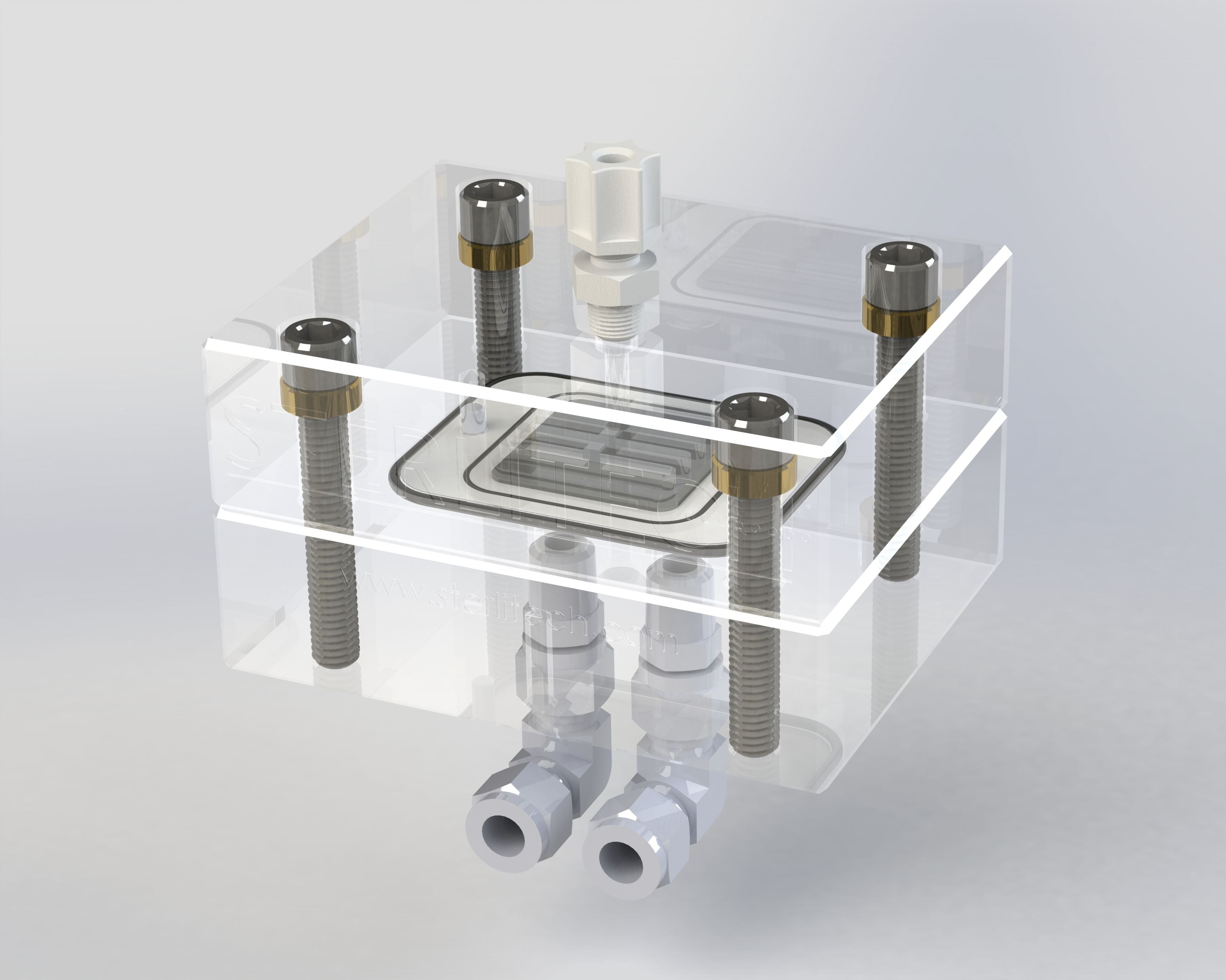

Product Family | Innovator | Explorer | Developer | |||||||||
|
||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Material |
Acetal (Delrin) |
316 Stainless Steel |
Virgin PTFE |
Acrylic |
Acetal (Delrin) |
316 Stainless Steel |
Virgin PTFE |
Acrylic |
Hastelloy™ |
316 Stainless Steel |
Acrylic |
Hastelloy™ |
Maximum Bolts Torque Setting (in-lbs) |
60 |
NA |
15 |
45 |
60 |
NA |
15 |
45 |
70 |
NA |
45 |
70 |
Maximum Fittings Torque Setting (in-lbs) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Max Pressure |
69 bar |
69 bar |
27.6 bar |
27.6 bar |
69 bar |
69 bar |
27.6 bar |
27.6 bar |
69 bar |
69 bar |
15.2 bar |
69 bar |
Max Temperature |
82°C |
150°C |
260°C |
88°C |
82°C |
150°C |
260°C |
88°C |
150°C |
150°C |
88°C |
150°C |
General FO Cell Specifications:
Active Membrane Area | 20.6 cm2 (3.2 in2) | 42 cm2 (6.5 in2) | 140 cm2 (22 in2) |
Hold-Up Vol. | 13 mL (0.44 oz) | 17 mL (0.57 oz) | 70 mL (2.4 oz) |
Connections |
Feed:1/4 in FNPT (base of cell) Draw Solute:1/4 in FNPT (top of cell) |
Feed:1/4 in FNPT (base of cell) Draw Solute:1/4 in FNPT (top of cell) |
Feed:1/4 in FNPT (base of cell) Draw Solute:1/4 in FNPT (top of cell) |
Outer Dimensions | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in) | 16.51 x 21.3 x 5 cm (6.5 x 8.38 x 2.07 in) |
Active Area Dimensions | 4.52 x 4.52 cm (1.78 x 1.78 in) | 9.207 x 4.572 cm (3.625 x 1.8 in) | 9.7 x 14.7 cm (3.81 x 5.78 in) |
Slot Depth | 0.23 cm (0.09 in) | 0.23 cm (0.09 in) | 0.19 cm (0.075 in) |
Documentation
Animation
CF042 Product Animation | Forward Osmosis Bench-top Filtration System |
---|---|
|
|
Frequently Asked Questions
Q: Are your PP spacers FDA compliant?
Yes, our Bi-Planar Feed Spacer Mesh is extruded from FDA compliant polypropylene.
Q: Why is the flat sheet membrane I'm using measuring a flux value less than the published flux value?
Flow characteristics for a spiral element and flat sheet membrane are significantly different and are really only comparable on a qualitative basis. Variability in the membrane manufacturing process, differences in water composition, test procedures, and test equipment, used in a factory, laboratory, or elsewhere, will impact water flux results.
Q: How do I install/remove permeate fittings or other plastic NPT fittings?
Sterlitech recommends to install all plastic fittings by hand using PTFE tape. If a plastic NPT or compression fitting starts to leak during operational testing, tighten the fitting carefully until the leaking stops. Excessive tightening may break the fitting or damage other components.
If the fittings is broken and stuck in the cell top, use a spiral flute extractor bit or similar tool to release the portion of the fitting in the cell top. If the cell top becomes cracked from removal efforts, a replacement can be purchased.
