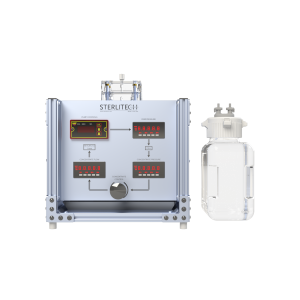

Benchtop Cross/Tangential Flow Filtration System, Low Pressure, 110V/230V, 50/60Hz, 1Ph
Benchtop Cross/Tangential Flow Filtration System, Low Pressure, 110V/230V, 50/60Hz, 1Ph
Powered by Bioz
1200835
Sterlitech
3-4 weeks
Benchtop Systems Comparison Table (Click to Expand/Collapse)
| Benchtop Systems |
 |
 |
 |
 |
 |
| Part Number | 1200835 (110/(230) | 1200635 (110) or 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) or 1200843 (230) |
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | X | ✅ | X | ✅ | ✅ |
| Data Logging Available | ✅ | ✅ | ✅ | ✅ | ✅ |
Specifications
More intuitive and compact than ever, the Benchtop Low Pressure Cross Flow Filtration System offers a refined, ergonomic interface for both new and existing customers at 1/3 the size of our analog skid systems.
- TF/CF compatibility
- Plug-and-play
- Built to fit your space constraints
- Precision flow and pressure sensors
| Cell Type | CF/TF Cells |
| Configuration | 1 Line, No Bypass |
| Feed Flow Rate | 3.2 LPM (0.84 GPM) |
| Max Pressure | 5.5 bar (80 PSI) |
| Max Temperature | 82 C (180 F) |
| Electrical Supply | 110/230V 50/60Hz / 1 phase |
| Pump and Motor Rating | PTFE/PEEK Micropump |
| Data Recording | Option Available |
