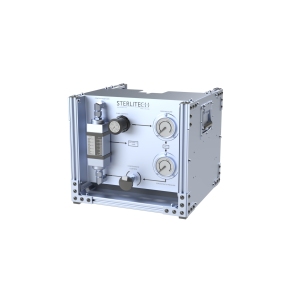

Benchtop Cross/Tangential Flow Filtration System, Explosion Proof
Powered by Bioz
1201336
Sterlitech
3-4 weeks
Benchtop Systems Comparison Table (Click to Expand/Collapse)
| Benchtop Systems |
 |
 |
 |
 |
 |
| Part Number | 1200835 (110/(230) | 1200635 (110) or 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) or 1200843 (230) |
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | X | ✅ | X | ✅ | ✅ |
| Data Logging Available | ✅ | ✅ | ✅ | ✅ | ✅ |
Specifications
The Explosion-proof Benchtop System operates completely on gas/air power and requires no electricity to operate.
- Safe operation of combustible fluids
- No explosion-proof wiring
- Use for organic solvent nanofiltration (OSN)
- Batch operated
- Requires: Gas source for system pressurization and an air source for pump operation
| Cell Type | TF/Cross Flow Cells, 1812 Housing |
| Configuration | 1 Line, Closed System |
| Feed Flow Rate | 13.3 LPM (3.5 GPM) |
| Max Pressure | 69 bar (1000PSI) |
| Max Temperature | 82 C (180 F) |
| Air Supply Required for Pump | 50-100 PSI Compressed/Shop Air |
| Gas Supply Required for System Pressure (SP) | Gas Canister: At or Above SP Shop Air: 100 PSH w/Booster to SP |
| Pump Rating | 316SS HP Air Operated Pump |
| Tank Capacity | 11.4 Liters (3 Gallons) |
