SKU: 1200684

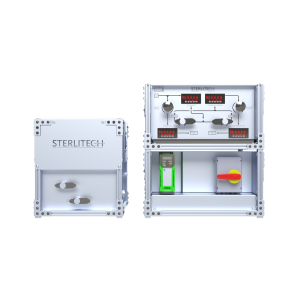

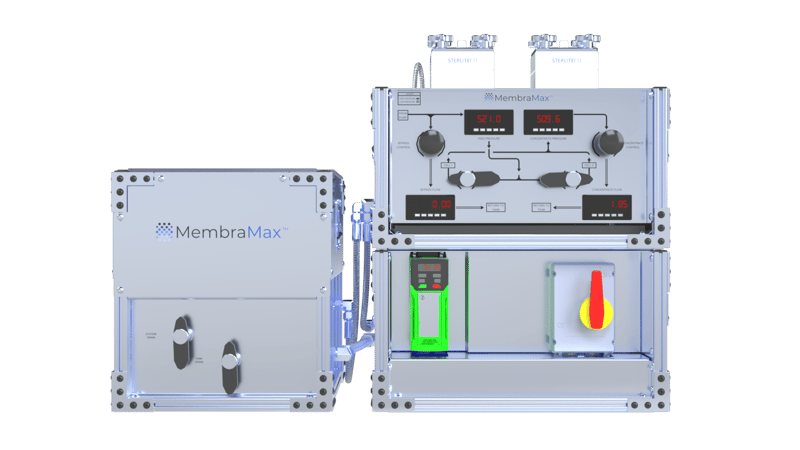

MembraMax HP (EU)
High Pressure, Cross / Tangential Flow Benchtop Filtration System
Key Specifications
- Manufacturer
- Sterlitech
- Electrical
- 230 V, 50/60 Hz, 1 Ph
- Brand
- MembraMax™
Specifications
Engineered for reliable, accurate membrane research in one-third the size of traditional skid systems.
- Compatible with all Sterlitech test cells
- Ready in minutes for MF, UF, NF and RO experiments
- Digital pressure and flow sensors
- High-efficiency heat exchanger
- Easy-access tank
- Ships within two weeks
- Expert technical support backed by Sterlitech
| Specification | Value |
|---|---|
| Cell Type | Cross Flow Cells, 1812 Housing |
| Configuration | 2 Parallel Lines |
| Feed Flow Rate | 11.7 LPM (3.1 GPM) |
| Max Pressure | 69 bar (1000 PSI) |
| Max Temperature | 82°C (180°F) |
| Electrical Supply | 230 V, 50/60 Hz, 1 Ph |
| Pump/Motor Rating | Hydracell Diaphragm Pump, Washguard Motor |
| Feed Tank | 316SS, Full Drain, 19 L (5 gal) Capacity |
| Minimum Operating Volume | 1.2 L (0.32 gal) |
| Data Recording | Option Available |
| Materials of Construction | 316L SS / FKM / Nitronic 50 / Celcon (Pump) 316 SS / FKM / FFKM / PTFE / Glass (Plumbing) |
Benchtop Systems Comparison
| MembraMax Benchtop Systems |  |
 |
 |
 |
 |
| Product Name | MembraMax LP | MembraMax HP (US) & MembraMax HP (EU) | MembraMax FO | MembraMax MD | MembraMax Flex (US) & MembraMax Flex (EU) |
| Part Number | 1200835 (110 V / 230 V) | 1200635 (110 V) / 1200684 (230 V) | 1200840 (110 V / 230 V) | 1200841 (110 V / 230 V) | 1200842 (110 V) / 1200843 (230 V) |
|---|---|---|---|---|---|
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110 V / 230 V | 110 V or 230 V | 110 V / 230 V | 110 V / 230 V | 110 V or 230 V |
| Temperature Regulation | ✕ | ✓ | ✕ | ✓ | ✓ |
| Data Logging Available | ✓ | ✓ | ✓ | ✓ | ✓ |
