Benchtop Cross/Tangential Flow Filtration System, 110V, 60Hz, 1Ph



    Benchtop Systems Comparison Table (Click to Expand/Collapse)



Benchtop Systems
Part Number	1200835 (110/(230)	1200635 (110) or 1200684 (230)	1200840 (110/230)	1200841 (110/230)	1200842 (110) or 1200843 (230)
Max Flow	3.2 LPM (0.84 GPM)	11.7 LPM (3.1 GPM)	3.2 LPM (0.84 GPM)	3.2 LPM (0.84 GPM)	3.2 LPM / 11.7 LPM
Max Pressure	5.5 bar (80 PSI)	69 bar (1000 PSI)	5.5 bar (80 PSI)	5.5 bar (80 PSI)	5.5 / 69 bar
Process Configuration	Cross / Tangential Flow		Forward Osmosis
Membrane Types	MF, UF	MF, UF, NF, RO	MF, UF, FO	MF, UF, NF, RO, FO, MD	MF, UF, NF, RO, FO, MD, PRO
Power	110/230V	110 or 230V	110/230V	110/230V	110 or 230V
Temperature Regulation	X	✅	X	✅	✅
Data Logging Available	✅	✅	✅	✅	✅

Specifications

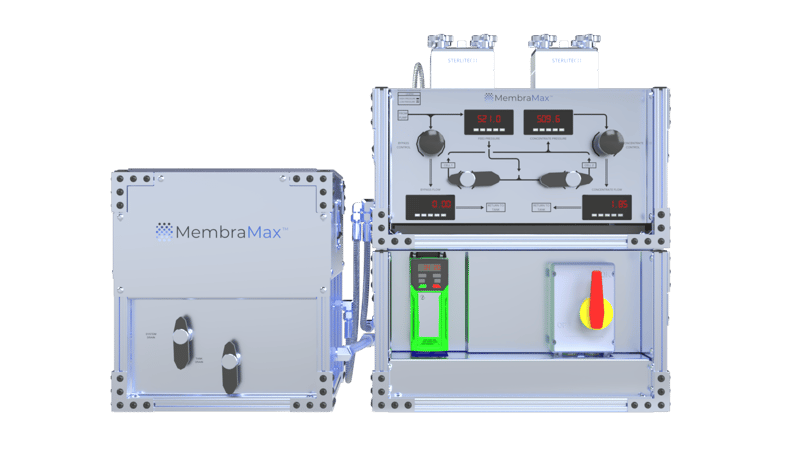

More intuitive and compact than ever, the Benchtop Cross Flow Filtration System offers a refined, ergonomic interface for both new and existing customers at 1/3 the size of our analog skid systems.

• Compatible with all Sterlitech Test Cells

• Plug-and-play

• Operable within minutes for RO, NF, UF, or MF experiments

• Built to fit your space constraints

• Digital pressure and flow sensors

• Easy-access tank

• A high-efficiency heat exchanger
