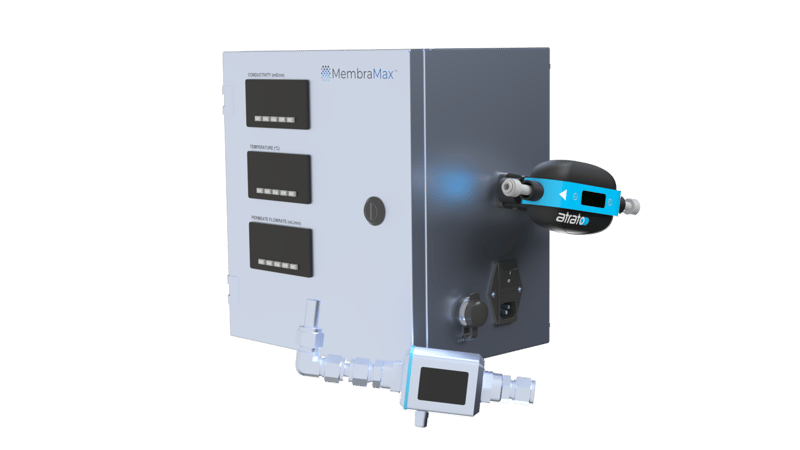

Expanded Benchtop Data Logging Kit

The Expanded Benchtop Data Logging Kit features include:

• Trend charts
• Data output
• Standard and metric data readouts
• 2 easily integrated sensors for Conductivity, Temperature and Permeate Flow Rate  values

The unit has displays for each of the individual  sensor values and outputs this data to the data logging  software on the “CTP Data” Page

Specifications:

Conductivity & Temperature Sensor
Conductivity Range	≥20 µS/cm
Temperature Range	–10 - 70 °C (14 - 158 °F)
Max Pressure	16 bar (232 psi)
Materials of Construction	316SS, PEEK, FKM

Permeate Flow Sensor
Flow Range*	2 - 500 mL/min
Temperature Range	–10 - 60 °C (14 - 140 °F)
Max Pressure	10 bar (145 psi)
Materials of Construction	316SS, PEEK, FKM

System
Data Retrieval	SD Card, Etherne
Electrical Supply	110V/230V, 50/60Hz, 1 Ph
Dimensions	12” (H) x 11” (W) x 8” (D)

*High-flow option for 1812 elements has a flow range of 20 - 5,000 mL/min

**Other materials available upon request
