SKU: 1201604

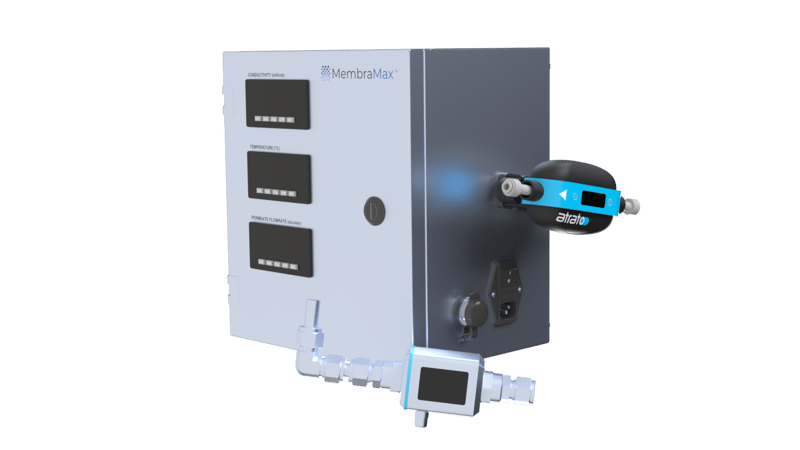

MembraMax Insight - HF
Expanded Benchtop Data Logging Kit
$10,750.79
Key Specifications
- Manufacturer
- Sterlitech
- Electrical
- 110 V / 230 V, 50/60 Hz, 1 Ph
- Dimensions
14x10x12
- Brand
- MembraMax™
Overview
Designed for seamless integration with MembraMax Systems, the MembraMax Insight data logging kit offers an optimal solution for comprehensive data recording across various applications. A high flow option for 1812 elements is available to accommodate higher permeate flow rates.
The Insight features include:
- Trend charts
- Data output
- Standard and metric data readouts
- Two easily integrated sensors for Conductivity, Temperature and Permeate Flow Rate values
The unit has displays for each of the individual sensor values and outputs this data to the data logging software on the "CTP Data" page.
Conductivity & Temperature Sensor
| Specification | Value |
|---|---|
| Conductivity Range | ≥20 QS/cm |
| Temperature Range | -10 – 70 °C (14 – 158 °F) |
| Max Pressure | 16 bar (232 PSI) |
| Materials of Construction | 316SS, PEEK, FKM |
Permeate Flow Sensor
| Specification | Value |
|---|---|
| Low Flow Sensor Range | 2 – 500 mL/min |
| High Flow Sensor Range | 20 – 5,000 mL/min |
| Temperature Range | -10 – 60 °C (14 – 140 °F) |
| Max Pressure | 10 bar (145 PSI) |
| Materials of Construction* | 316SS, PEEK, FKM |
*Other materials available upon request
System
| Specification | Value |
|---|---|
| Data Retrieval | SD Card, Ethernet |
| Electrical Supply | 110 V / 230 V, 50/60 Hz, 1 Ph |
| Dimensions | 12" (H) x 11" (W) x 8" (D) |
