Product gallery
SKU: 1201595

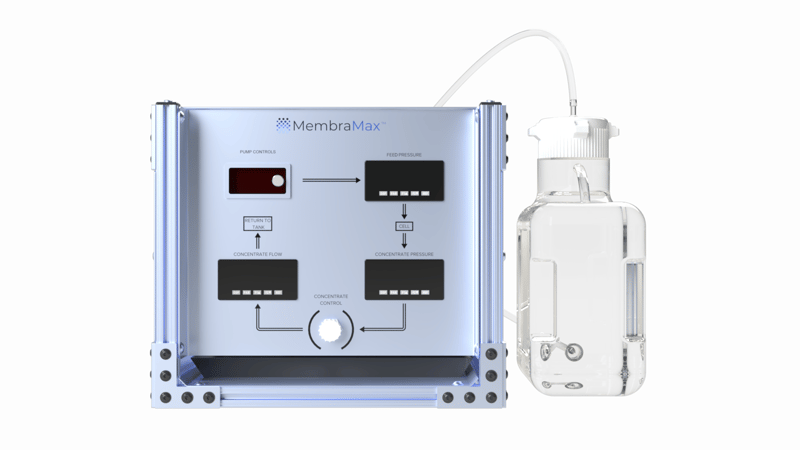

MembraMax LP-AR
Low Pressure, Acid Resistant, Cross / Tangential Flow Benchtop Filtration System
Key Specifications
- Manufacturer
- Sterlitech
- Electrical
- 110 V / 230 V, 50/60 Hz, 1 Ph
- Brand
- MembraMax™
Specifications
Engineered for exceptional performance in harsh chemical environments, the LP-AR acid-resistant benchtop filtration system is built entirely with plastic internals to provide compatibility with aggressive, low pH fluids. Compact and highly versatile, it supports accurate membrane research in one-third the size of traditional skid systems.
- Compatible with Sterlitech cross / tangential flow cells
- Ready in minutes for MF and UF experiments
- Digital pressure and flow sensors
- Ships within two weeks
- Expert technical support backed by Sterlitech
| Specification | Value |
|---|---|
| Cell Type | CF016, CF042, CF047, CF090 |
| Configuration | 1 Line, No Bypass |
| Feed Flow Rate | 4.2 LPM (1.1 GPM) |
| Max Pressure | 6 bar (87 PSI) |
| Max Temperature | 82°C (180°F) |
| Electrical Supply | 110/230V, 50/60 Hz, 1 Ph |
| Pump/Motor Rating | KNF Diaphragm Pump |
| Feed Tank | Polycarbonate, 10 L (2.5 gallons) Capacity |
| Data Recording | Option Available |
| Materials of Construction | PP / FFKM / FKM (Pump) PP / PC / PTFE / PVC / PVDF (Plumbing) |
Benchtop Systems Comparison
| Benchtop Systems |  |
 |
 |
 |
 |

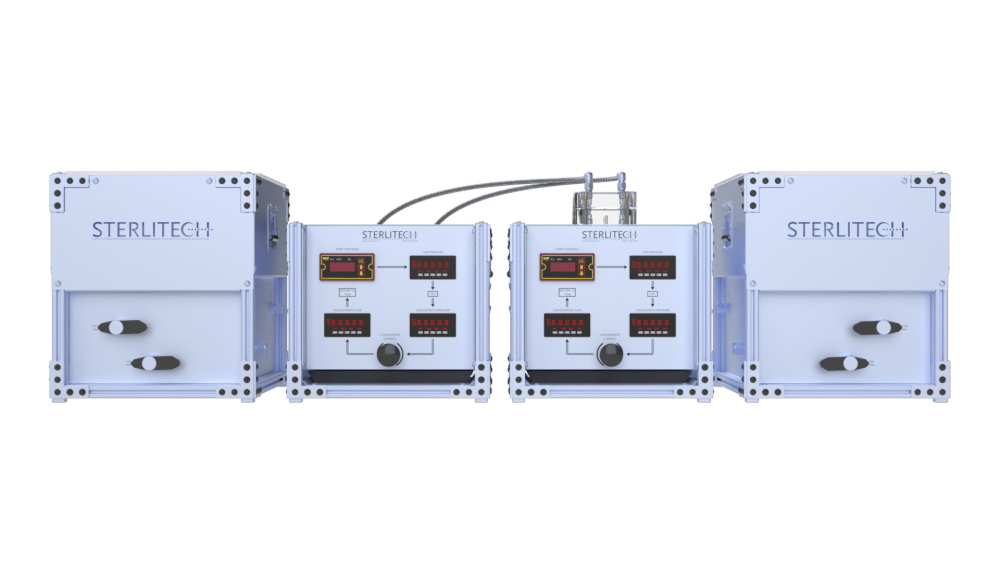

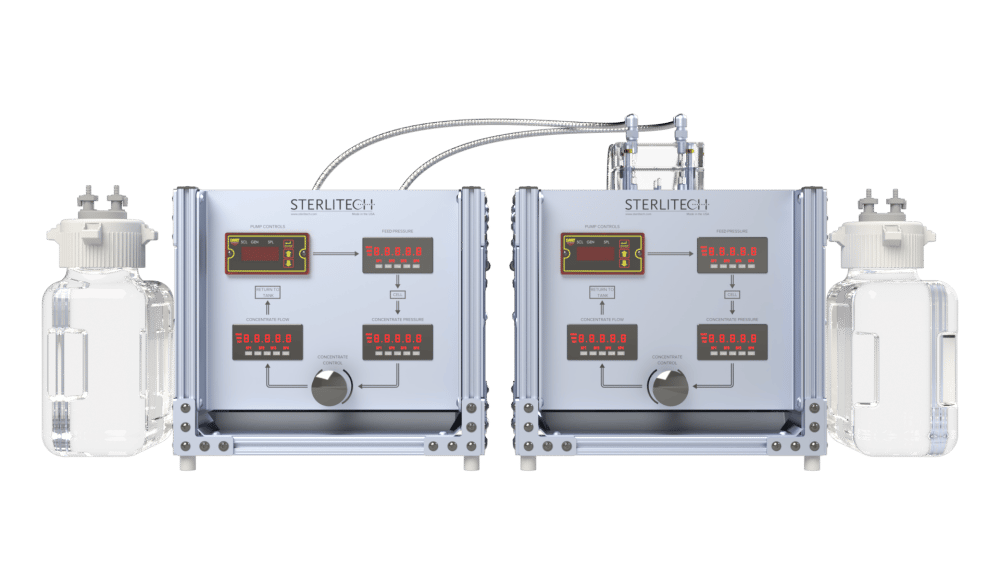

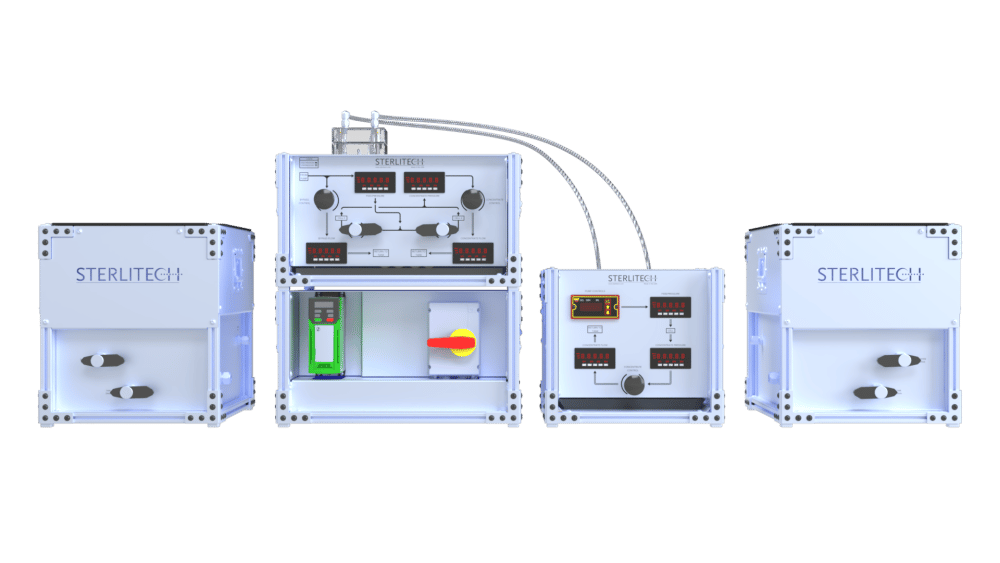

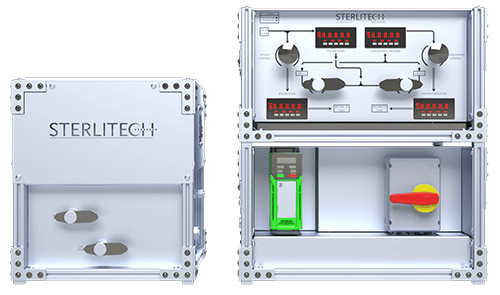

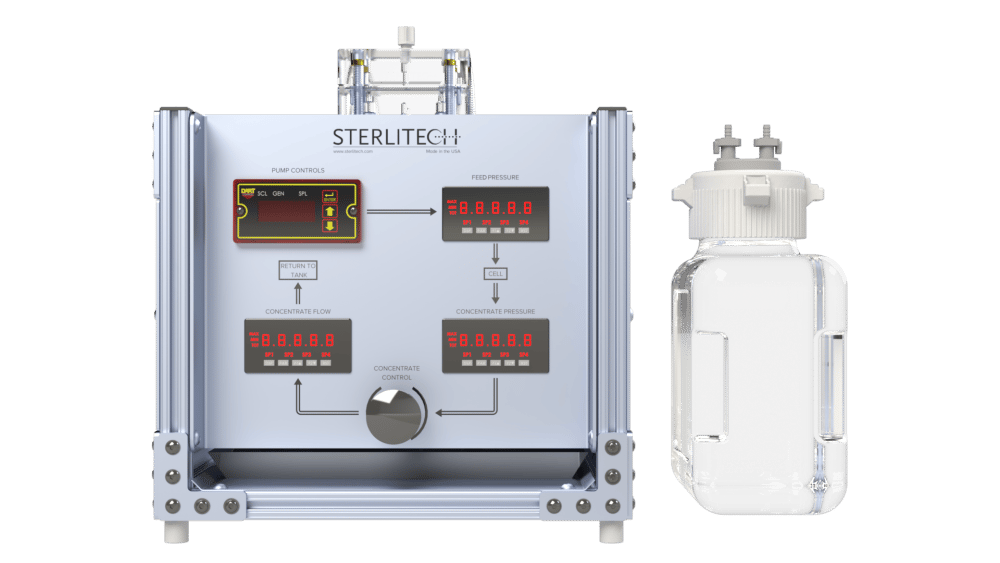

| Part Number | 1200835 (110/230) | 1200635 (110) / 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) / 1200843 (230) |
|---|---|---|---|---|---|
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | ✕ | ✓ | ✕ | ✓ | ✓ |
| Data Logging Available | ✓ | ✓ | ✓ | ✓ | ✓ |
