SKU: 1201304

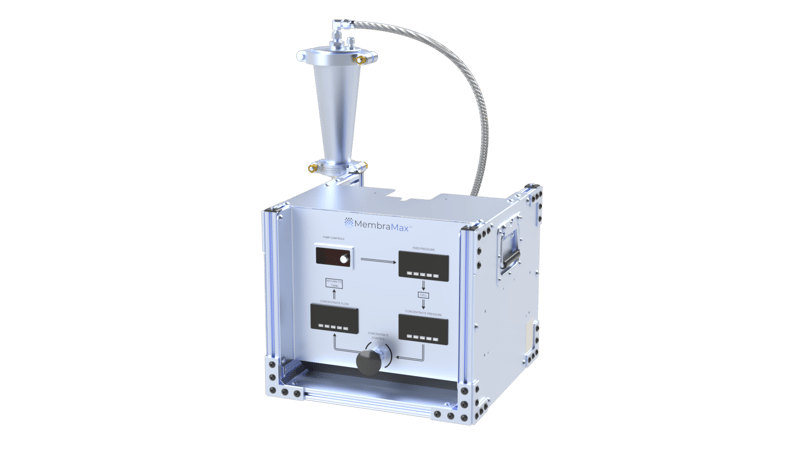

MembraMax Mini
Low Volume, Cross / Tangential Flow Benchtop Filtration System
Key Specifications
- Manufacturer
- Sterlitech
- Electrical
- 110 V / 230 V, 50/60 Hz, 1 Ph
- Brand
- MembraMax™
Specifications
The MembraMax Mini is purpose-built for small-scale nanofiltration (NF) and reverse osmosis (RO) applications, making it an ideal choice for pharmaceutical and biotech workflows. This batch-operated system uses air pressurization via a gas cylinder or shop air with a gas booster, providing precise control without requiring large fluid volumes. Engineered for reliable, accurate membrane research in one-third the size of traditional skid systems.
- Compatible with Sterlitech cross / tangential flow cells
- Ready in minutes for MF, UF, NF and RO experiments
- Batch operated
- Requires: Gas source for system pressurization
- Digital pressure and flow sensors
- Ships within two weeks
- Expert technical support backed by Sterlitech
| Specification | Value |
|---|---|
| Cell Type | CF016, CF042, CF047, CF090 |
| Configuration | 1 Line, Closed System |
| Feed Flow Rate | 0.5 LPM (0.13 GPM) |
| Max Pressure | 69 bar (1000 PSI) |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 110 V / 230 V, 50/60 Hz, 1 Ph |
| Gas Supply | Gas Canister: 1000 PSI or above Shop Air: 100 PSI w/ Booster |
| Pump/Motor Rating | SS/PTFE/PEEK Micropump |
| Data Recording | Option Available |
| Tank Capacity | 1L (0.26 gallons) |
| Minimum Operating Volume | 200 mL (0.05 gallons) |
| Materials of Construction | 316L SS / PTFE / PEEK (Pump) 316 SS / FKM / PTFE / Glass (Plumbing) |
Benchtop Systems Comparison
| MembraMax Benchtop Systems |  |
 |
 |
 |
 |

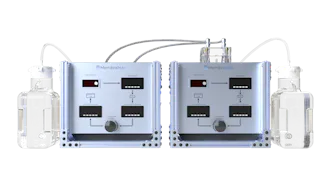

| Product Name | MembraMax LP | MembraMax HP (US) & MembraMax HP (EU) | MembraMax FO | MembraMax MD | MembraMax Flex (US) & MembraMax Flex (EU) |
| Part Number | 1200835 (110 V / 230 V) | 1200635 (110 V) / 1200684 (230 V) | 1200840 (110 V / 230 V) | 1200841 (110 V / 230 V) | 1200842 (110 V) / 1200843 (230 V) |
|---|---|---|---|---|---|
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110 V / 230 V | 110 V or 230 V | 110 V / 230 V | 110 V / 230 V | 110 V or 230 V |
| Temperature Regulation | ✕ | ✓ | ✕ | ✓ | ✓ |
| Data Logging Available | ✓ | ✓ | ✓ | ✓ | ✓ |
