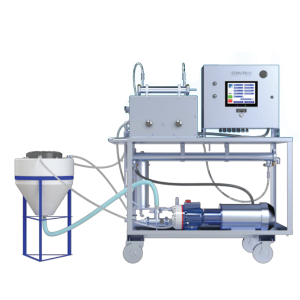

Pilot Skid, Standard Configuration, 2 Lines for Housings, Digital, 230V, 50/60 Hz, 3 Ph, 8.8 GPM at 800 PSI
Contact us now to request a quote or inquire about stocked skids!
Powered by Bioz
1190058
Sterlitech
5-7 days
| Housing Type | 1812 Housing (316SS), 2540 Housing (316SS) |
| Membrane Sample Size | 1812: max 0.5 m², 2540: max 3.5 m² |
| Configuration | 2 Parallel Lines |
| Feed Flow Rate | 33.3 LPM (8.8 GPM) |
| Max Pressure | 69 bar (1000 PSI) |
| Data Monitoring | Pressure, Flow Rate, Temperature, Conductivity, Scale |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 230V / 50/60Hz / 3 Ph |
| Pump and Motor | Hydra-Cell Diaphragm Pump, Leeson Washguard Motor |
Check out other related products below!
More Choices:
Frequently Asked Questions
Q: What is the recommended replacement frequency for the Hydracell pump oil?
Hydracell pump oil needs to be changed after the first 100 hours of operation. Then, pump oil should be changed according to the guidelines described in the pump user manual. For more information on the pump please see user manual.
Q: What is the maximum tolerance for feed water viscosity and particle size for the Hydracell pump (high pressure feed pump)?
The maximum feed water and the maximum solids size for the Hydracell pump are 150 cP and 200 µm, accordingly.
