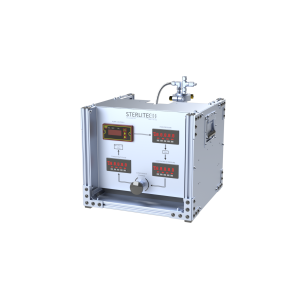

Benchtop Cross/Tangential Flow Filtration System, Low Volume, 110V/230V, 50/60Hz, 1Ph
Powered by Bioz
1201304
Sterlitech
3-4 weeks
Benchtop Systems Comparison Table (Click to Expand/Collapse)
| Benchtop Systems |
 |
 |
 |
 |
 |
| Part Number | 1200835 (110/(230) | 1200635 (110) or 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) or 1200843 (230) |
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | X | ✅ | X | ✅ | ✅ |
| Data Logging Available | ✅ | ✅ | ✅ | ✅ | ✅ |
Specifications
The Low Volume Benchtop Filtration System is purpose-built for small-scale nanofiltration (NF) and reverse osmosis (RO)
applications, making it an ideal choice for pharmaceutical and biotech workflows. This batch-operated system uses air
pressurization via a gas cylinder or shop air with a gas booster, providing precise control without requiring large fluid
volumes.
| System Features | |
| Cell Type | CF016, CF042, CF047, CF090 |
| Configuration | 1 Line, Closed System |
| Feed Flow Rate | 0.5 LPM (0.13 GPM) |
| Max Pressure | 69 bar (1000 PSI) |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 110V / 50/60Hz / 1 Phase |
| Gas Supply | Gas Canister: 1000PSI or Above Shop Air: 100PSI w/ Booster |
| Motor Rating | SS/PTFE/PEEK Micropump |
| Data Recording | Option Available |
| Feed Tank | 500mL (Larger Tanks Available) |
| Min Operating Volume | 200mL |
| Materials of Construction | |
| Pump | 316L SS / PTFE / PEEK |
| Plumbing | 316 SS / FKM / PTFE / Glass |
