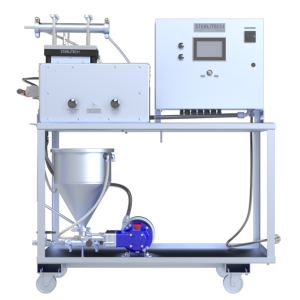

Hybrid Skid, Standard Configuration, 2 Lines, Digital, 230V, 50/60 Hz, 1Ph, 3.1 GPM at 600 PSI
Contact us now to request a quote or inquire about stocked skids! Check out our MPD Overview page for more information.
Powered by Bioz
1190054
Sterlitech
2 weeks
| Cell Type | Cross Flow: Sepa Cell, 1812 Housing |
| Configuration | 2 Parallel Lines |
| Feed Flow Rate | 11.7 LPM (3.1 GPM) @ 600PSI & 6.7 LPM (1.8 GPM) @ 1000PSI |
| Feed Tank | 316SS, Full Drain, Conical, 19 Liter (5 Gallon) Capacity |
| Feed Controls | Manual Bypass Valve, Manual Concentrate Control Valve |
| Max Pressure | 69 bar (1000PSI) |
| Electrical Supply | Designated by SKU Description |
| Motor Rating | Leeson Washguard Motor: 2 HP, 5.4 A, 1750 RPM, 230 V, 50/60 Hz, 3 Ph. |
| Pump | Hydra-Cell, High Pressure SS Diaphragm Pump |
| Variable Frequency Drive (VFD) | Input: (Designated by SKU Description) Output: 230V 60Hz 3Ph |
| Digital Panel | Touchscreen & Virtual Displays Live and Recorded Data Standard Data Points: 2 Pressure, 2 Flow, 2 Conductivity/Temperature, 1 Scale Low-Volume Cutoff & High-Pressure Cutoff Features |
Check out other related products below!
More Choices:
Frequently Asked Questions
Q: What is the recommended replacement frequency for the Hydracell pump oil?
Hydracell pump oil needs to be changed after the first 100 hours of operation. Then, pump oil should be changed according to the guidelines described in the pump user manual. For more information on the pump please see user manual.
Q: What is the maximum tolerance for feed water viscosity and particle size for the Hydracell pump (high pressure feed pump)?
The maximum feed water and the maximum solids size for the Hydracell pump are 150 cP and 200 µm, accordingly.
