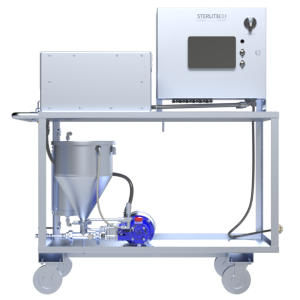

Automated Hybrid Skid, Standard Configuration, 2 Lines for CF Cells/Housings, Digital, 110V, 50/60Hz, 1Ph, 3.1 GPM at 600 PSI
Contact us now to request a quote or inquire about stocked skids!
Powered by Bioz
1190110
Sterlitech
5-7 days
| Cell Type | 1812 Housing (316SS), Sepa CF (316SS) |
| Membrane Sample Size | 1812: max 0.5 m2, Sepa: 140 cm2 |
| Configuration | 2 Parallel Lines, Solenoid Controlled |
| Feed Flow Rate | 11.7 LPM (3.1 GPM) |
| Max Pressure | 69 Bar (1000 PSI) |
| Data Monitoring2 | Pressure, Flow Rate, Temperature, Conductivity, Scale |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 110/230V, 50/60Hz, 1 Ph |
| Pump and Motor | Hydra-Cell Diaphragm Pump, Leeson Washdown Motor |
| Gas Supply | Gas Cannister/Compressor: 1000 PSI or above |
Check out other related products below!
More Choices:
Frequently Asked Questions
Q: What is the recommended replacement frequency for the Hydracell pump oil?
Hydracell pump oil needs to be changed after the first 100 hours of operation. Then, pump oil should be changed according to the guidelines described in the pump user manual. For more information on the pump please see user manual.
Q: What is the maximum tolerance for feed water viscosity and particle size for the Hydracell pump (high pressure feed pump)?
The maximum feed water and the maximum solids size for the Hydracell pump are 150 cP and 200 µm, accordingly.
