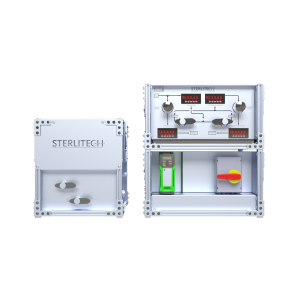

Benchtop Cross/Tangential Flow Filtration System, 110V, 60Hz, 1Ph
Powered by Bioz
1200635
Sterlitech
In Stock
Benchtop Systems Comparison Table (Click to Expand/Collapse)
| Benchtop Systems |
 |
 |
 |
 |
 |
| Part Number | 1200835 (110/(230) | 1200635 (110) or 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) or 1200843 (230) |
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | X | ✅ | X | ✅ | ✅ |
| Data Logging Available | ✅ | ✅ | ✅ | ✅ | ✅ |
Specifications
More intuitive and compact than ever, the Benchtop Cross Flow Filtration System offers a refined, ergonomic interface for both new and existing customers at 1/3 the size of our analog skid systems.
-
Compatible with all Sterlitech Test Cells
-
Plug-and-play
-
Operable within minutes for RO, NF, UF, or MF experiments
-
Built to fit your space constraints
-
Digital pressure and flow sensors
-
Easy-access tank
-
A high-efficiency heat exchanger
|
Cell Type |
Any Cell Type up to 1812 Housing |
|
Configuration |
2 Parallel Lines |
|
Feed Flow Rate |
11.7 LPM (3.1 GPM) |
|
Max Pressure |
69 bar (1000PSI) |
|
Max Temperature |
82 C (180 F) |
|
Electrical Supply |
110/230V 50/60Hz / 1 or 3 phase |
|
Pump and Motor Rating |
Hydracell Diaphragm Pump, Leeson Washguard Motor |
