Benchtop Cross/Tangential Flow Filtration System, Acid Resistant, 110V/230V, 50/60Hz, 1Ph
Powered by Bioz
Benchtop Systems Comparison Table (Click to Expand/Collapse)
| Benchtop Systems |
 |
 |
 |
 |
 |
| Part Number | 1200835 (110/(230) | 1200635 (110) or 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) or 1200843 (230) |
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | X | ✅ | X | ✅ | ✅ |
| Data Logging Available | ✅ | ✅ | ✅ | ✅ | ✅ |
Specifications

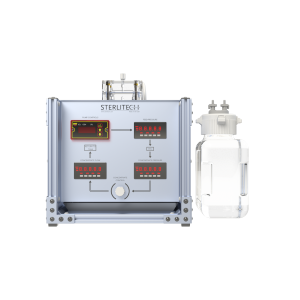

Engineered for exceptional performance in harsh chemical environments, the Acid-Resistant Benchtop Filtration System is built entirely with plastic internals to provide compatibility with aggressive, low pH fluids. Compact and highly versatile, it supports a wide range of MF and UF testing without compromising on footprint or cost. This single-unit system features the same user-friendly interface as the CF Benchtop System, complete with precision flow and pressure sensors, and can be paired with a data acquisition kit for real-time monitoring and recording. Use the system for Cross / Tangential Flow Filtration (TFF) or combine with another benchtop system for the option of operating in Forward Osmosis (FO).
|
Cell Type |
CF016, CF042, CF047, CF090 |
|
Configuration |
1 Line, No Bypass |
|
Feed Flow Rate |
4.2 LPM (1.1 GPM) |
|
Max Pressure |
6 bar (87 PSI) |
|
Max Temperature |
82 °C (180 °F) |
|
Electrical Supply |
110V/230V, 50/60Hz, 1 Ph |
|
Pump and Motor Rating |
PP, FFKM, FKM Diaphragm Pump |
|
Data Recording |
Option Available |
