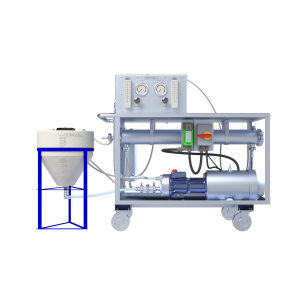

main product photo

Pilot Skid, Standard Configuration, 2 Lines for Housings, Analog, 230V, 50/60 Hz, 3 Ph, 8.8 GPM at 800 PSI

Contact us now to request a quote or inquire about stocked skids!

Call For Price
1190060
Sterlitech
3-4 weeks

Specifications

Housing Type

1812 Housing (316SS)

2540 Housing (316SS)
Membrane Sample Size

1812: max 0.5 m2

2450: max 3.5 m2
Configuration 2 Parallel Lines
Feed Flow Rate 33.3 LPM (8.8 GPM)
Max Pressure 69 bar (1000 PSI)
Data Monitoring Pressure, Flow Rate
Max Temperature 82 °C (180 °F)
Electrical Supply 230V, 50/60 Hz, 3 Ph
Pump and Motor Hydra-Cell Diaphragm Pump Leeson Washguard Motor
Citations

No results

Product Attachments
document Analog Pilot Skid Datasheet (3.01 MB)
document Analog Pilot Skid Manual (22.82 MB)
document Cross Tangential Flow Filtration Handbook (3.06 MB)
document Systems Maintenance Domestic Support Package (16.99 MB)
document Systems Maintenance International Support Package (19.43 MB)
document Sterlitech System Rental Packages (17.55 MB)
Related Products

Check out other related products below!

More Choices:
  1. Hybrid Skid, Standard Configuration, 2 Lines for CF Cells/Housings, Analog, 110V, 50/60Hz, 1Ph, 3.1 GPM at 600 PSI
    Hybrid Skid, Standard Configuration, 2 Lines for CF Cells/Housings, Analog, 110V, 50/60Hz, 1Ph, 3.1 GPM at 600 PSI
    Out of stock
  2. 1812 Element Housing, 316SS, 1/2" OD Tube, Includes Female Adapters, 600 PSI Max, 1/ea
    1812 Element Housing, 316SS, 1/2" OD Tube, Includes Female Adapters, 600 PSI Max, 1/ea
    $2,446.43
  3. 2540 Element Housing, SS316, Compatible with Female Elements, 1" Sanitary Fittings with 1/2" OD Tube Adapters, 600 PSI Max, 1/Ea
    2540 Element Housing, SS316, Compatible with Female Elements, 1" Sanitary Fittings with 1/2" OD Tube Adapters, 600 PSI Max, 1/Ea
    $2,238.89
  4. Veolia 2540 Sanitary Element, GE, UF, Male, 30mil Spacer
    Veolia 2540 Sanitary Element, GE, UF, Male, 30mil Spacer
    $736.74
  5. Heat Exchanger, 2.5 ft2 Effective Area, 280 BTU/hr F, Rated to 1200PSI
    Heat Exchanger, 2.5 ft2 Effective Area, 280 BTU/hr F, Rated to 1200PSI
    $3,098.38

Frequently Asked Questions

Hydracell pump oil needs to be changed after the first 100 hours of operation. Then, pump oil should be changed according to the guidelines described in the pump user manual. For more information on the pump please see user manual.

The maximum feed water and the maximum solids size for the Hydracell pump are 150 cP and 200 µm, accordingly.
