SKU: 1190055

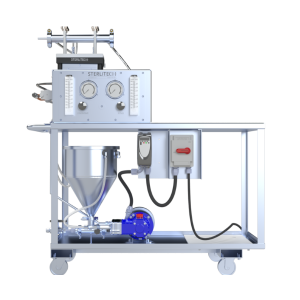

Hybrid Skid, Standard Configuration, 2 Lines for CF Cells/Housings, Analog, 110V, 50/60Hz, 1Ph, 3.1 GPM at 600 PSI
Contact us now to request a quote or inquire about stocked skids! Check out our MPD Overview page for more information.
Key Specifications
- Brand
- Sterlitech
Specifications
| Specification | Value |
|---|---|
| Cell Type | 1812 Housing (316SS), Sepa CF (316SS) |
| Membrane Sample Size | 1812: max 0.5 m², Sepa: 140 cm² |
| Configuration | 2 Parallel Lines |
| Feed Flow Rate | 11.7 LPM (3.1 GPM) |
| Max Pressure | 69 bar (1000 PSI) |
| Data Monitoring | Pressure, Flow Rate |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 110 V, 50/60 Hz, 1 Ph 230 V, 50/60 Hz, 1 Ph |
| Pump and Motor Rating | Hydracell Diaphragm Pump, Leeson Washguard Motor |
