Aquaporin Inside HFFO2 Hollow Fiber FO Membrane Module
AQP HFFO2 is a cross flow membrane module containing Aquaporin Inside ™ Hollow Fiber membranes. With an Aquaporin Inside ™ coating on the lumen side, feed solution will be circulated in the lumen and draw solution will be circulated in the shell.
SKU
1160085
Manufacturer
Aquaporin
Details
Aquaporin Inside HFFO2 Hollow Fiber FO Membrane Module
Specifications
|
Membrane Module Type |
HFFO14 | ||
|---|---|---|---|
|
Aquaporin InsideTM coating: |
On lumen side of fiber |
On lumen side of fiber |
On lumen side of fiber |
|
Active area (lumen side/shell side): |
0.6 m2 |
2.3 m2 |
13.8 m2 |
|
Fiber ID: |
0.2 mm |
0.2 mm |
0.2 mm |
|
Water Flux (LMH): |
11 +/- 1.5 |
11 +/- 1.5 |
11 +/- 1.5 |
|
Specific reverse salt flux (g/L): |
0.15 +/- 0.05 |
0.15 +/- 0.05 |
0.15 +/- 0.05 |
|
Module dimensions |
150 mm long; 50 mm in diameter |
300 mm long; 70 mm in diameter |
390 mm long; 200 mm in diameter |
|

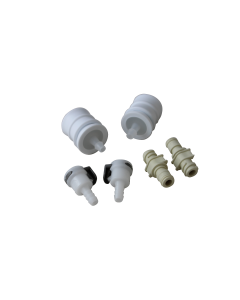

Module connections: |
Lumen: 1⁄4” (6.4mm) threaded female Luer |
Lumen: 1⁄4” (6.4mm) threaded female Luer |
Feed: BSP 1/2” Draw: BSP 3/8” |
Media
Video tutorial of the Aquaporin Inside™ Hollow Fiber Forward Osmosis Module (HFFO2)
Attachments
Aquaporin HFF02 Data Sheet (Size: 286.3 KB)
