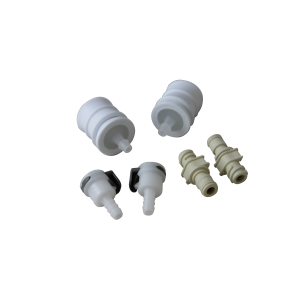

Aquaporin HFFO2 Feed and Draw Fittings
Hose barb fittings (1/4") for feed and draw solution ports on Aquaporin membrane module housings: HFFO2 and HFFO06 models.
Powered by Bioz
1180102
Aquaporin
1-2 days
Specifications
|

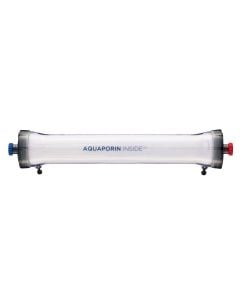

Membrane Module Type |
HFFO14 | ||
|---|---|---|---|
|
Aquaporin InsideTM coating: |
On lumen side of fiber |
On lumen side of fiber |
On lumen side of fiber |
|
Active area (lumen side/shell side): |
0.6 m2 |
2.3 m2 |
13.8 m2 |
|
Fiber ID: |
0.2 mm |
0.2 mm |
0.2 mm |
|
Water Flux (LMH): |
11 +/- 1.5 |
11 +/- 1.5 |
11 +/- 1.5 |
|
Specific reverse salt flux (g/L): |
0.15 +/- 0.05 |
0.15 +/- 0.05 |
0.15 +/- 0.05 |
|
Module dimensions |
150 mm long; 50 mm in diameter |
300 mm long; 70 mm in diameter |
390 mm long; 200 mm in diameter |
|
Module connections: |
Lumen: 1⁄4” (6.4mm) threaded female Luer |
Lumen: 1⁄4” (6.4mm) threaded female Luer |
Feed: BSP 1/2” Draw: BSP 3/8” |
