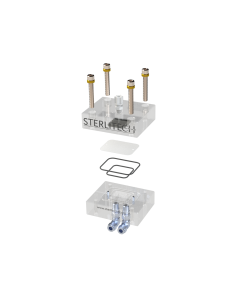

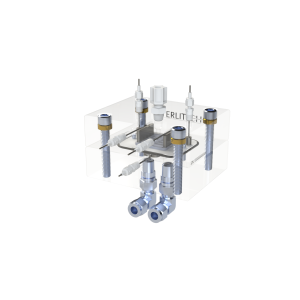

CF016A Electrode Modified Crossflow Assembly, Acrylic

SKU
1160017
Manufacturer
Sterlitech
Material Type
Acrylic

Details

CF016A Electrode Modified Crossflow Assembly, Acrylic

Applications

Cross/tangential flow test cells are typically used in membrane applications such as :

  • Biological or biopharmaceutical processing
  • Concentration of fruit juices and extracts
  • Food and beverage processing
  • Desalination of brackish water or seawater
  • Purification of rinse water in electroplating tanks
  • Municipal or industrial water and wastewater purification

Specifications

Specifications by Material:

Product Family Innovator Explorer Developer



CF042D-FO

CF016D

CF042A-FO

CF016SS

CF042A-FO

CF016P

CF042A-FO

CF016A

CF042D-FO

CF042D

CF042SS-FO

CF042SS

CF042P-FO

CF042P

CF042A-FO

CF042A

Sepa CF-FO

CF042H

Sepa CF-FO

Sepa CF

Sepa CF-FO

AC Sepa

Sepa CF-FO

HAS Sepa CF

Material

Acetal (Delrin)

316 Stainless Steel

Virgin PTFE

Acrylic

Acetal (Delrin)

316 Stainless Steel

Virgin PTFE

Acrylic

Hastelloy™

316 Stainless Steel

Acrylic

Hastelloy™

Maximum Bolts Torque Setting (in-lbs)

60

NA

15

45

60

NA

15

45

70

NA

45

70

Maximum Fittings Torque Setting (in-lbs)

25

25

25

25

25

25

25

25

25

25

25

25

Max Pressure

69 bar
(1000 psig)

69 bar
(1000 psig)

27.6 bar
(400 psig)

27.6 bar
(400 psig)

69 bar
(1000 psig)

69 bar
(1000 psig)

27.6 bar
(400 psig)

27.6 bar
(400 psig)

69 bar
(1000 psig)

69 bar
(1000 psig)

15.2 bar
(220 psig)

69 bar
(1000 psig)

Max Temperature

82°C
(180°F)

150°C
(302°F)

260°C
(500°F)

88°C
(190°F)

82°C
(180°F)

150°C
(302°F)

260°C
(500°F)

88°C
(190°F)

150°C
(302°F)

150°C
(302°F)

88°C
(190°F)

150°C
(302°F)

General Cross Flow Cell Specifications:

  CF016 CF042 Sepa
Active Membrane Area 20.6 cm2 (3.2 in2) 42 cm2 (6.5 in2) 140 cm2 (22 in2)
Hold-Up Vol. 13 mL (0.44 oz) 17 mL (0.57 oz) 70 mL (2.4 oz)
Connections

Feed:1/4 in FNPT (base of cell)
Concentrate1/4 in FNPT (base of cell)
Filtrate:1/8 in FNPT (top of cell)

Feed:1/4 in FNPT (base of cell)
Concentrate1/4 in FNPT (base of cell)
Filtrate:1/8 in FNPT (top of cell)

Feed:1/4 in FNPT (base of cell)
Concentrate1/4 in FNPT (base of cell)
Filtrate:1/8 in FNPT (top of cell)

Outer Dimensions

12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in)

12.7 x 10 x 8.3 cm (5 x 4 x 3.25 in)

16.51 x 21.3 x 5 cm (6.5 x 8.38 x 2.07 in)

Active Area Dimensions

4.52 x 4.52 cm (1.78 x 1.78 in)

9.207 x 4.572 cm (3.625 x 1.8 in)

9.7 x 14.7 cm (3.81 x 5.78 in)

Slot Depth 0.23 cm (0.09 in) 0.23 cm (0.09 in) 0.19 cm (0.075 in)
Slot Width 39 mm (1.54 in) 39 mm (1.54 in) 95.3 mm (3.75 in)

Bench System - Sterlitech

Analog Skid - Sterlitech

Frequently Asked Questions

Yes, our Bi-Planar Feed Spacer Mesh is extruded from FDA compliant polypropylene.

Flow characteristics for a spiral element and flat sheet membrane are significantly different and are really only comparable on a qualitative basis. Variability in the membrane manufacturing process, differences in water composition, test procedures, and test equipment, used in a factory, laboratory, or elsewhere, will impact water flux results.

The Sterlitech bench-scale crossflow test cells are available in a variety of materials to suit most applications:

  • Stainless Steel
  • PTFE
  • HastelloyTM
  • Delrin (natural acetal copolymer)
  • Acrylic

Addtionally, there are a variety of available o-ring seals including Buna-N, EPDM, Viton, FEP encapsulated Viton, and FFKM (Markez).



Video Link

Sterlitech recommends to install all plastic fittings by hand using PTFE tape. If a plastic NPT or compression fitting starts to leak during operational testing, tighten the fitting carefully until the leaking stops. Excessive tightening may break the fitting or damage other components.

If the fittings is broken and stuck in the cell top, use a spiral flute extractor bit or similar tool to release the portion of the fitting in the cell top. If the cell top becomes cracked from removal efforts, a replacement can be purchased.



test cell and flat sheet membrane coupon sizes

These membrane sizes are intended for use in the bench-scale crossflow test cells offered by Sterlitech. Please see list of flat sheet membranes we offer and their dimensions:
