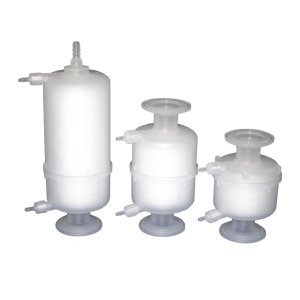

SKV PES Capsule Filters
The SKV Series PES filter capsule with all-polypropylene construction provides excellent chemical compatibility and superior flow per unit area as compared to other membrane capsules. These PES filter capsules have been specially designed for sterilizing in biopharmaceutical applications. The hydrophilic PES membrane does not require pre-wetting agents, thereby eliminating a potential source of contamination. The PES membrane is a low protein-binding media.
Details
Details:
The capsules were designed with built-in bleed valves for simple and efficient evacuation of air and liquid. The units are used for filtration of small to medium volumes used in production, laboratory and pilot runs. No adhesives, binders, or surfactants are used in the manufacturing process of these capsules. They are rinsed with pyrogen-free water to reduce extractables and downtime. All filter capsules are 100% integrity-tested to ensure filter performance each and every time out of the package. Our SKV Series PES filter capsules are well-suited for pharmaceutical applications where superior flow and bacterial retention is required. The capsule can be ordered pre-sterilized.
Specifications:
Materials of Construction:
- Media: PES (Polyethersulfone)
- Media Supports: Polypropylene
- Cage, Core, End Caps: Polypropylene
- Valve O-Rings: Silicon (standard); Sealing: Thermally welded
- Push to Connect Fitting: Acetel-body, EPDM-O-Ring, 304 SS Grip Ring
Fitting Connections: See ordering guide for the availability. Any inlet/outlet combinations. (Custom adapters available upon request.)
Nominal Dimensions
- Lengths: 1.5 in (51 mm), 2.5 in (80 mm), 5.0 in (136 mm), 7.5 in (210 mm), 10 in (265 mm)
- Diameter: 2.88 in (73 mm)
Effective Filtration Area: 1.5in: 0.7 ft2 (650 cm2), 2.5in: 1.4 ft2 (1300 cm2), 5.0in: 2.8 ft2 (2600 cm2), 7.5in: 4.2ft2 (3900 cm2), 10in: 5.6 ft2 (5200 cm2)
Operating Conditions:
- Maximum Forward Differential Pressure:Minimum Burst Pressure: 8.3 bar (120 psid) at 22 °C
- Liquid: 5.5 bar (80 psi) at 22 °C
- Gas: 4.1 bar (59.5 psi) at 22 °C
- Maximum Forward Differential Pressure: 5 bar (72.5 psid) at 22 °C
- Maximum Reverse Differential Pressure: 3.0 bar (43.5 psid) at 22 °C
- Maximum Operating Temperature: PP & Gamma PP: 80 °C
- HDPE: 60 °C
Applications:
- Buffers and Media
- Fermentation Broths
- Product Sterilization
- SVP (Small Volume Parenterals)
- BioBags
- Pharmaceuticals
- Vaccines
- Biologics
- Antibiotics
- Scale-up Processing
- Water
- Serums
Custom Capsule/Cartridge Filter Specifications and Fact Sheets:
| Filter Information | Diameter |
| Junior Capsules | 41 mm |
| Junior Cartridges | 29 mm |
| SKV Series PES Filter Capsules | 70 mm |
| RD65 Series Filter Capsules | 65 mm |
| SKS Series Filter Capsules | 71.5 mm |
| SKL Series PTFE Filter Capsules | 73 mm |
| D90R Filter Capsules | 90 mm |
