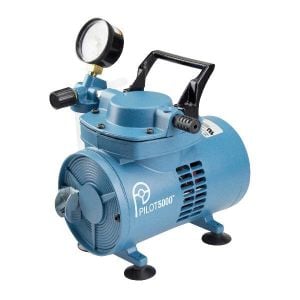

PILOT Chemical Resistant Diaphragm Vacuum Pump 115V / 60 Hz (TLD5000)
Powered by Bioz
PTFE Coated Vacuum Pumps
These C-series are the economical chemical-resistant diaphragm pump* with PTFE coatings line from Rocker Scientific. With its chamber coated with PTFE, ROCKER C pumps are resistant to moderate corrosive gases and more cost effective when compared with traditional acid-resistant pumps.
Note: 220V/50Hz is available upon request
| Model Name | Max vacuum mbar |
Max flow rate* lpm |
Horsepower hp |
Noise level dB |
Hose barb inch (mm) |
Net weight kg |
|
|---|---|---|---|---|---|---|---|
 |
Rocker 300C | 145 | 23 | 1/8 | 50 | 5/16 (ID8) | 4.1 |
 |
Rocker 400C | 99 | 34 | 1/8 | 52 | 5/16 (ID8) | 5.7 |
 |
Rocker 410C | 25 abs | 23 | 1/6 | 52 | 5/16 (ID8) | 5.7 |
 |
Rocker 900C | 99 abs | 60 | - | 60 | 5/16 (ID8) | 6.8 |
 |
Rocker 910C | 25 abs | 37 | - | 60 | 5/16 (ID8) | 6.8 |
  |
Lafil 300C | 99 abs | 23 | - | 50 | 5/16 (ID8) | 5.9 |
PTFE Coated Vacuum Pump Features
- Chemical resistance & effective
Applied with PTFE-coated diaphragm and pump head with FKM valves, Rocker C-series pumps are adequate to work in milder chemical gases and be cost-effective at the same time. Tocheck chemical compatibility of Rocker products, refer to Rocker_Chemical_Compatibility_Guide.pdf - Oil-free & care-free
Rocker PTFE-coated pumps are driven by diaphragm that needs no lubricant, making them maintenance-free and oil-mist-free. - Minimized vibration & quiet
Superior weight distribution and assemblies minimize the vibration and noises and maximize stability. - Overheat protection
Rocker C-series pumps are equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pumps safer and long-lasting.
Rocker PTFE Coated Vacuum Pump International Certificates
- CE certification
- UKCA certification
- IP 30 protection
- RoHS certification
PTFE Coated Vacuum Pump Applications
- Vacuum evaporation and concentration
- Vacuum drying / oven / defoaming
- Solvent purification
- Gel drying
- Vacuum filtration
Check out other related products below!
Frequently Asked Questions
Q: Do you have any Rocker Repair Videos to help maintain my items?
Yes, we do! Check out our Rocker Repair Channel here
Q: Can I operate my Rocker vacuum pump in an orientation that is not level?
No. Rocker vacuum pumps must be operated on a level, flat surface. Running Rocker 300 or 400 series pumps when they are tilted or not level can cause the prote® protection device inside the inlet filter to close, which may restrict airflow and reduce pump performance.
Q: Can I move my Rocker vacuum pump while it is operating?
No. Rocker vacuum pumps should not be moved while operating. Before moving the pump, turn it off and open the inlet to atmosphere to release vacuum. Moving a running Rocker 300 or 400 series pump can cause the prote® protection device inside the inlet filter to close, which may restrict airflow and affect pump performance.
Q: My Rocker 300 series, or Rocker 400 series, vacuum pump is operating but there is no vacuum at the inlet hose barb. What is the problem?
The Prote protection device within the inlet filter may have closed inadvertently. This commonly occurs if the pump was not level, or was moved, while operating. To reset the Prote protection device to the open position, the inlet filter bowl and filter must be removed so that the Prote float can be lowered to the open position. Once the Prote float is in the open position, the filter and bowl can be reinstalled.
