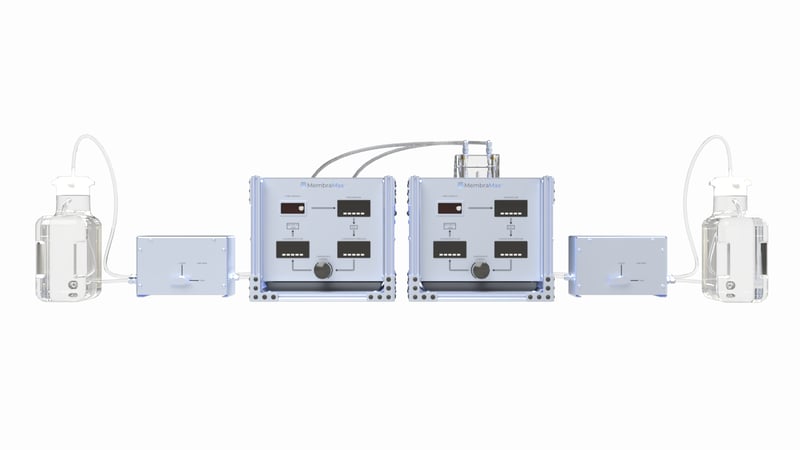

Benchtop Membrane Distillation Filtration System, 110V/230V, 50/60Hz, 1Ph



    Benchtop Systems Comparison Table (Click to Expand/Collapse)



Benchtop Systems
Part Number	1200835 (110/(230)	1200635 (110) or 1200684 (230)	1200840 (110/230)	1200841 (110/230)	1200842 (110) or 1200843 (230)
Max Flow	3.2 LPM (0.84 GPM)	11.7 LPM (3.1 GPM)	3.2 LPM (0.84 GPM)	3.2 LPM (0.84 GPM)	3.2 LPM / 11.7 LPM
Max Pressure	5.5 bar (80 PSI)	69 bar (1000 PSI)	5.5 bar (80 PSI)	5.5 bar (80 PSI)	5.5 / 69 bar
Process Configuration	Cross / Tangential Flow		Forward Osmosis
Membrane Types	MF, UF	MF, UF, NF, RO	MF, UF, FO	MF, UF, NF, RO, FO, MD	MF, UF, NF, RO, FO, MD, PRO
Power	110/230V	110 or 230V	110/230V	110/230V	110 or 230V
Temperature Regulation	X	✅	X	✅	✅
Data Logging Available	✅	✅	✅	✅	✅

Specifications

Compact and intuitive, the Benchtop Low Pressure Filtration System offers a refined, ergonomic interface.

• Can be used for Forward Osmosis (engineered osmosis) or Membrane Distillation
• Plug-and-play
• Log pressure and flow data of both units simultaneously
• Built to fit your space constraints
• 2 Stainless Steel tanks and high effiency heat exchangers
• Can use Carboys for applictions that don't require temperature control (FO)
