SKU: 1200840

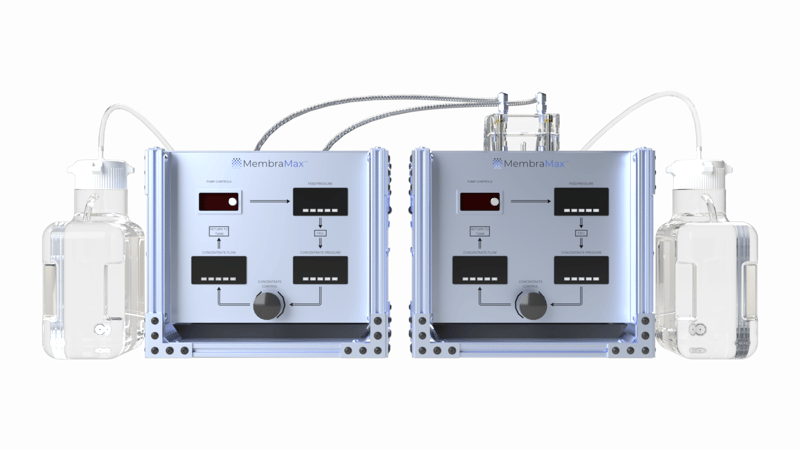

MembraMax FO
Forward Osmosis Benchtop Filtration System
Key Specifications
- Manufacturer
- Sterlitech
- Electrical
- 110 V / 230 V, 50/60 Hz, 1 Ph
- Brand
- MembraMax™
Specifications
With a smart and intuitive design, the MembraMax FO forward osmosis benchtop filtration system is designed to be the most compact, versatile, and chemically compatible system available for FO experiments. Engineered for reliable, accurate membrane research in one-third the size of traditional skid systems.
- Compatible with Sterlitech FO flat sheet cells
- Ready in minutes for FO experiments
- Digital pressure and flow sensors
- Ships within two weeks
- Expert technical support backed by Sterlitech
| Specification | Value |
|---|---|
| Cell Type | CF016, CF042, CF047, CF090, Sepa |
| Configuration | 1 Line, No Bypass |
| Feed Flow Rate | 3.2 LPM (0.84 GPM) |
| Max Pressure | 5.5 bar (80 PSI) |
| Max Temperature | 82 °C (180 °F) |
| Electrical Supply | 110 V / 230 V, 50/60 Hz, 1 Ph |
| Pump/Motor Rating | PTFE and PEEK Micropump |
| Data Recording | Option Available |
| Feed / Draw Tanks | Polycarbonate, 10 L (2.5 gallons) Capacity |
| Materials of Construction | 316L SS / PTFE / PEEK (Pump) 316 SS / FKM / FFKM / PTFE / Glass (Plumbing) |
Benchtop Systems Comparison
| Benchtop Systems |  |
 |
 |
 |
 |
| Part Number | 1200835 (110/230) | 1200635 (110) / 1200684 (230) | 1200840 (110/230) | 1200841 (110/230) | 1200842 (110) / 1200843 (230) |
|---|---|---|---|---|---|
| Max Flow | 3.2 LPM (0.84 GPM) | 11.7 LPM (3.1 GPM) | 3.2 LPM (0.84 GPM) | 3.2 LPM (0.84 GPM) | 3.2 / 11.7 LPM |
| Max Pressure | 5.5 bar (80 PSI) | 69 bar (1000 PSI) | 5.5 bar (80 PSI) | 5.5 bar (80 PSI) | 5.5 / 69 bar |
| Process Configuration | Cross / Tangential Flow | Forward Osmosis | |||
| Membrane Types | MF, UF | MF, UF, NF, RO | MF, UF, FO | MF, UF, NF, RO, FO, MD | MF, UF, NF, RO, FO, MD, PRO |
| Power | 110/230V | 110 or 230V | 110/230V | 110/230V | 110 or 230V |
| Temperature Regulation | ✕ | ✓ | ✕ | ✓ | ✓ |
| Data Logging Available | ✓ | ✓ | ✓ | ✓ | ✓ |
