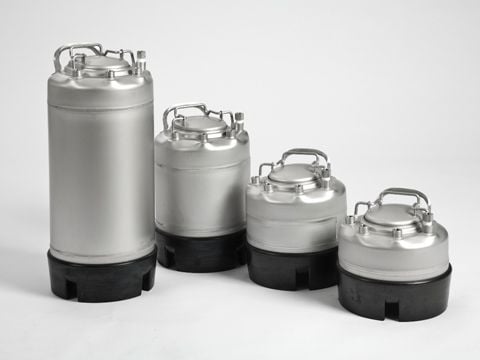

Pressure vessels are used in-line between a pressure source and a filtration device. Constructed with 316/316L stainless steel, these products comply with current good manufacturing practices for use under positive or negative pressure. Features smooth, electropolished finish and options for standard or wide mouth openings for easy cleaning.
Components:
- Pressure filtration vessel
- Relief valve
- Pressure gauge
- Ball valve
- 2 hose barb connections
For additional fittings or to purchase replacement valves, gauges, O-rings and other accessories, visit Pressure Filtration Vessel Parts.
| SKU | Product Name | Volume | Opening | Material Type | Est Ship | Price | ||
|---|---|---|---|---|---|---|---|---|
|

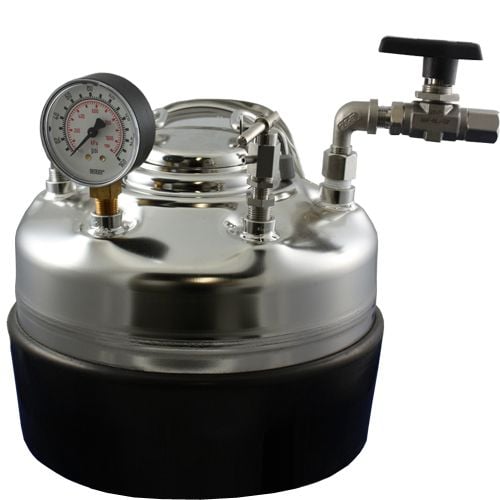

740160-1 | 1-Gal 316SS Pressure Vessel (includes: pressure gauge, safety relief valve, hose barb connectors | 1 Gallon | Oval Top | 316 Stainless Steel | 1-2 days |
$1,570.64
|
|
|
740360-1 | 3-Gal 316SS Pressure Vessel (includes: pressure gauge, safety relief valve, hose barb connectors (3/8" OD tubing), tubing, hose clamp, dip tube) | 3 Gallon | Oval Top | 316 Stainless Steel | 1-2 days |
$1,880.39
|
|
|
740560-1 | 5-Gal 316SS Pressure Vessel (includes: pressure gauge, safety relief valve, hose barb connectors (3/8" OD tubing), tubing, hose clamp, dip tube) | 5 Gallon | Oval Top | 316 Stainless Steel | 1-2 days |
$2,211.14
|
|
|
741060-1 | 10-Gal 316SS Wide Mouth (includes: pressure gauge, safety relief valve, hose barb connectors (3/8" OD tubing), dip tube) | 10 Gallon | Oval Top | 316 Stainless Steel | 3-4 weeks |
$2,323.71
|
Accessory
Applications
- Contain process fluids for filtration through pressure type membrane filter holders
- Reservoir for pressurized feed solutions upstream of inline holder
- Recommended for low pH and high salt applications
Specifications
|
|
|
|
|
|
|---|---|---|---|---|
|
Volume (US gall) |
1 |
3 |
5 |
10 |
|
Volume (liters) |
3.78 |
11.3 |
18.9 |
37.8 |
|
Materials |
|
|
|
|
|
Inlet/Outlet |
¼” NPTF |
¼” NPTF |
¼” NPTF |
¼” NPTF |
|
Closure |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
|
Dimensions |
|
|
|
|
|
Max. Temp (ºF) @ Max Pressure (psi) |
300 @ 150 |
300 @ 150 |
300 @ 150 |
300 @ 110 |
|
Recommended Filter Holders |
KS 90 |
KS 142 |
KS 142 |
KS 293 |
Max Operating Temp and Pressures
|
Maximum Operating Temperature |
Pressures |
||
|---|---|---|---|
|
ºF |
ºC |
psi |
Bar |
| 100 | 38 | 165 | 11.4 |
| 200 | 93 | 165 | 11.4 |
| 300 | 149 | 155 | 10.7 |
Maximum operating temperature and pressure may be limited by vent relief valve maximum pressure, O-ring maximum temperature, rubber skirt maximum temperature, or other factors.
Note: Cells are not autoclavable.
