High-Pressure Compact 316 Stainless Steel On/Off Valve with Lever Handle, 1/4 NPT Female x 1/4 NPT Male
Details
High-Pressure Compact 316 Stainless Steel On/Off Valve with Lever Handle, 1/4 NPT Female x 1/4 NPT Male
Applications

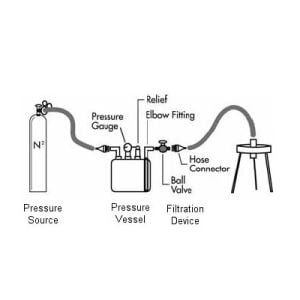

- Contain process fluids for filtration through pressure type membrane filter holders
- Reservoir for pressurized feed solutions upstream of inline holder
- Recommended for low pH and high salt applications
Specifications
|
||||
---|---|---|---|---|
Volume (US gall) |
1 |
3 |
5 |
10 |
Volume (liters) |
3.78 |
11.3 |
18.9 |
37.8 |
Materials |
|
|
|
|
Inlet/Outlet |
¼” NPTF |
¼” NPTF |
¼” NPTF |
¼” NPTF |
Closure |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
Dimensions |
|
|
|
|
Max. Temp (ºF) @ Max Pressure (psi) |
300 @ 150 |
300 @ 150 |
300 @ 150 |
300 @ 110 |
Recommended Filter Holders |
KS 90 |
KS 142 |
KS 142 |
KS 293 |
Max Operating Temp and Pressures
Maximum Operating Temperature |
Pressures |
||
---|---|---|---|
ºF |
ºC |
psi |
Bar |
100 | 38 | 165 | 11.4 |
200 | 93 | 165 | 11.4 |
300 | 149 | 155 | 10.7 |
Maximum operating temperature and pressure may be limited by vent relief valve maximum pressure, O-ring maximum temperature, rubber skirt maximum temperature, or other factors.
Note: Cells are not autoclavable.
