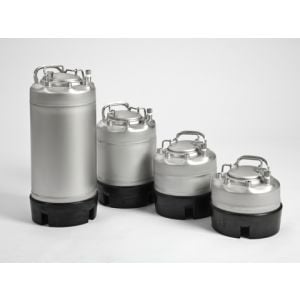

10-Gal 316SS Wide Mouth (includes: pressure gauge, safety relief valve, hose barb connectors (3/8" OD tubing), dip tube)
All Sterlitech stainless steel pressure filtration vessels include a pressure gauge, safety relief valve, ball valve, elbows, hose barb connectors (3/8" OD tubing) and a dip tube. See the accompanying picture for reference.
Powered by Bioz
|
|
|
|
|
|
|---|---|---|---|---|
|
Volume (US gall) |
1 |
3 |
5 |
10 |
|
Volume (liters) |
3.78 |
11.3 |
18.9 |
37.8 |
|
Materials |
|
|
|
|
|
Inlet/Outlet |
¼” NPTF |
¼” NPTF |
¼” NPTF |
¼” NPTF |
|
Closure |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
3 7/8” x 1 ¼” |
|
Dimensions |
|
|
|
|
|
Max. Temp (ºF) @ Max Pressure (psi) |
300 @ 150 |
300 @ 150 |
300 @ 150 |
300 @ 110 |
|
Recommended Filter Holders |
KS 90 |
KS 142 |
KS 142 |
KS 293 |
Max Operating Temp and Pressures
|
Maximum Operating Temperature |
Pressures |
||
|---|---|---|---|
|
ºF |
ºC |
psi |
Bar |
| 100 | 38 | 165 | 11.4 |
| 200 | 93 | 165 | 11.4 |
| 300 | 149 | 155 | 10.7 |
Maximum operating temperature and pressure may be limited by vent relief valve maximum pressure, O-ring maximum temperature, rubber skirt maximum temperature, or other factors.
Note: Cells are not autoclavable.
- Contain process fluids for filtration through pressure type membrane filter holders
- Reservoir for pressurized feed solutions upstream of inline holder
- Recommended for low pH and high salt applications
