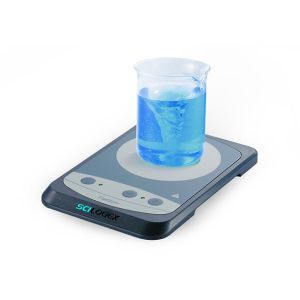

Scilogex FlatSpin Stirrer

The Scilogex FlatSpin Stirrer is an ultra-flat compact stirrer ideal for stirring applications. Its space-saving design minimizes bench space and portable due to its light weight.

Be the first to review this product

SKU: 86352003

Manufacturer: Sterlitech

Manufacturer: Scilogex

Model: FlatSpin Stirrer

Type: Stirrer (Analog)

Electrical: 100V/60Hz

Est Ship: 5-7 days

Details

Scilogex FlatSpin Stirrer

Specifications

Hotplate/Stirrer Performance Comparison by Manufacturer: Scilogex Stirrers | Scilogex Hotplate-Stirrers | Benchmark

Scilogex Stirrers

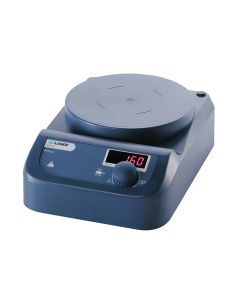

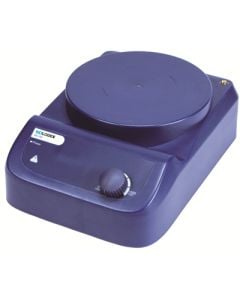

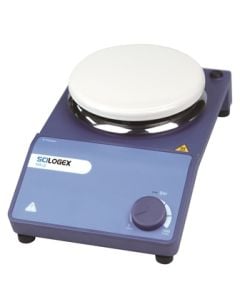

	MS-S	MS-PA	MS-PB	MS-M-S10
Dimension of work plate [mm]	ø135 (5")	ø135 (5")	ø135 (5")	180 × 450
Work plate material	Ceramic-coated steel	ABS Plastic	ABS Plastic	S/steel w/silicone film
Motor type	DC brushless	DC	DC	DC brushless
Motor rating input [W]	18	5	5	12
Motor rating output [W]	10	3	3	4
Power [W]	30	15	10	20
Voltage [VAC]	100-240	100-240	100-240	100-240
Frequency [Hz]	50/60	50/60	50/60	50/60
Stirring positions	1	1	1	10
Max. stirring quantity[H₂O] L	20	3	3	0.4 (ea. position)
Max. magnetic bar(L × Ø) mm	80	50	50	40
Speed Range [rpm]	0-1500	100-1500	0-1500	0-1100
Speed display	Scale	LED	Scale	Scale
Speed display resolution [rpm]	N/A	N/A	N/A	N/A
Protection class [DIN EN60529]	IP42	IP42	IP42	IP42
Dimension [W × D × H] mm	160 × 280 × 85	150 × 260 × 80	150 × 260 × 80	182 × 552 × 65
Weight [kg]	2.8	1.8	1.8	3.2
Max. Temperature [°C]	340	280	280	NA
Permissible Relative Humidity	80%	80%	80%	80%

Scilogex Hotplate-Stirrers:

	MS7-H550-Pro	S7-H550-S	MS-H-Pro+	MS-H-S	MS-H280-Pro	MS-H-S10
Work Plate Dim. [mm]	184 × 184 (7")	184 × 184 (7")	ø135 (5")	ø135 (5")	ø135 (5")	180 × 450
Work plate material	Glass-ceramic	Glass-ceramic	Ceramic-coated steel	Ceramic-coated steel	Ceramic-coated steel	S/steel w/silicone film
Motor Type	DC brushless	Shaded pole	DC brushless	DC brushless	DC	DC brushless
Motor Rating Input [W]	18	15	18	18	5	12
Motor Rating Output [W]	10	1.5	10	10	3	4
Power [W]	1050	1030	550	530	515	490
Voltage [VAC]	100-120/200-240	100-120/200-240	100-120/200-240	100-120/200-240	100-120/200-240	100-120/200-240
Frequency [Hz]	50/60	50/60	50/60	50/60	50/60	50/60
Stirring Positions	1	1	1	1	1	10
Max. Stirring Quantity[H₂O] L	20	10	20	20	3	0.4 (ea. position)
Max. Magnetic Bar(L × Ø) mm	80	80	80	80	50	40
Speed Range [rpm]	100-1500	0-1500	100-1500	0-1500	100-1500	0-1100
Speed Display	LCD	Scale	LCD	Scale	LED	Scale
Speed Display Resolution [rpm]	+-1	N/A	+-1	N/A	N/A	N/A
Protection Class (DIN EN60529)	IP21	IP21	IP42	IP42	IP21	IP42
Dimensions [W × D × H] mm	215 × 360 × 112	215 × 360 × 112	160 × 280 × 85	160 × 280 × 85	150 × 260 × 80	182 × 552 × 65
Weight [kg]	5.3	4.5	2.8	1.8	1.8	3.2
Max. Temperature [°C]	550	550	340	340	280	NA
Permissible Relative Humidity	80%	80%	80%	80%	80%	80%
Heating output [W]	1,000	1,000	500	500	500	470
Safety Temp. [°C]	580	580	360	350	320	140
Temp. Display	LCD	LED	LCD	Scale	LED	Scale

Benchmark Stirrers, Hotplates, and Hotplate-Stirrers:

	H4000 Stirrer	H4000 Hotplate	H4000 Hotplate-Stirrer
Work Plate Dim. [mm]	7.5 × 7.5"	7.5 × 7.5"	7.5 × 7.5"
Work Plate Material	Ceramic	Ceramic	Ceramic
Voltage [VAC]	100-120/200-240	100-120/200-240	100-120/200-240
Frequency [Hz]	50/60	50/60	50/60
Stirring Positions	1	N/A	1
Speed Range [rpm]	60-1500	N/A	60-1500
Speed Display	Analog	N/A	Analog
Dimensions [W × D × H]	8 × 9 × 4.5"	8 × 9 × 4.5"	8 × 9 × 4.5"
Ambient Temp. Range [°C]	+5-380	+5-380	+5-380
Control	Quick Adjustment Knob	Quick Adjustment Knob	Quick Adjustment Knob
