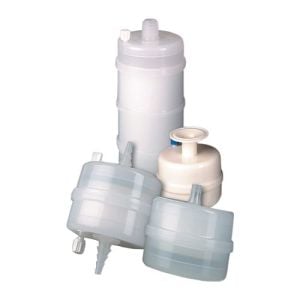

PTFE Membrane Capsule Filter, 0.2 Micron, 1.5" Sanitary Flange Inlet&Outlet, EFA: 0.8sqft, OAL: 4.7in
1470276
Sterlitech
0.2
0.8
4.7
Details
PTFE Membrane Capsule Filter, 0.2 Micron, 1.5" Sanitary Flange Inlet&Outlet, EFA: 0.8sqft, OAL: 4.7in
PTFE Capsule Filter Applications:
- Acids
- Bases
- Solvents
- Fine Chemicals
- Plating Solutions
- Process Water
- Beverages
- Ink Jets
- Electronics
- Pharmaceuticals
- Biologics
- Dyes
- Lacquers
- Parts Cleaning
PTFE Capsule Filter General Specifications:
| Membrane | Hydrophobic PTFE |
| Membrane Supports | Polypropylene Microfiber |
| Housing | Polypropylene |
| Cage, Core, End Caps | Polypropylene |
| End Fittings Available | 1/4" Barb, 1.5" Sanitary Flange, 1/2" NPTM, 1/4" Barb, 1/4" NPTM, 3/8" Barb |
| Lengths Available | *Varies with connection |
| Diameter | 9 cm (3.5 in) |
| Max Operational Pressure | 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F) |
| Max Differential Pressure | 4.1 bar (60 psi) @ 21°C (70°F) |
| Max Operating Temperature | 43°C (110°F) at 2.1 bar (30 psi) |
| Autoclave | Up to 5 Cycles. 30 minutes @ 121°C |
| Flow Rate, Small | <1.9 L/min (0.5 gal/min) |
| Flow Rate, Medium | <7.5 L/min (2 gal/min) |
| Flow Rate, Large | <15 L/min (4 gal/min) |
