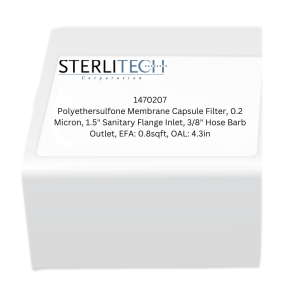

Polyethersulfone Membrane Capsule Filter, 0.2 Micron, 1.5" Sanitary Flange Inlet, 3/8" Hose Barb Outlet, EFA: 0.8sqft, OAL: 4.3in (CMMP9208YM)
Details
Polyethersulfone Membrane Capsule Filter, 0.2 Micron, 1.5" Sanitary Flange Inlet, 3/8" Hose Barb Outlet, EFA: 0.8sqft, OAL: 4.3in (CMMP9208YM)
PES Capsule Filter Applications:
- Acids
- Bases
- Solvents
- Fine Chemicals
- Plating Solutions
- Process Water
- Beverages
- Ink Jet
- Electronics
- Pharmaceuticals
- Biologics
- Dyes
- Lacquers
- Parts Cleaning
The hydrophilic PES membrane does not require pre-wetting with IPA and flushing with DI water thereby eliminating a potential source of contamination and hazardous waste. In addition, the PES membrane reduces the potential for bubble formation by not de-wetting in out-gassing fluids unlike hydrophobic filters such as polypropylene. All filter capsules are 100% integrity tested to ensure filter performance each and every time out of the package.
Polyethersulfone Capsule Filter Product and Performance
| Materials of Construction | |
|
Membrane: |
Hydrophilic Polyethersulfone |
|
Membrane Supports: |
Polypropylene Microfiber |
|
Housing: |
Polyester |
|
Cage, Core, End Caps: |
Polypropylene |
| Fitting Connections: | MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb |
| Dimensions (Nominal) | |
|
Lengths Available*: |
3.5 - 5.0" (9-13 cm) |
|
*Varies with connection styles |
7.6 - 9.1" (19-23 cm) |
|
11.5 - 13.0" (29-33 cm) |
|
| Diameter: |
3.5 in (9 cm) |
| Effective Filtration Area: |
0.8 ft² (748 cm²) / Small 3.0 ft² (2806 cm²) / Medium 5.9 ft² (5500 cm²) / Large |
| Operating Conditions | |
| Max Operating Pressure: | 80 psi (5.5 bar) @ 70ºF (21ºC) in Liquid, 55 psi (3.8 bar) @ 70ºF (21ºC) in Gas |
| Max Differential Pressure: | 60 psi (4.1 bar) @ 70ºF (21ºC) |
| Max Operating Temperature: |
110ºF (43ºC) at ≤30 psi (2.1 bar) Operating Pressure |
| Autoclave: | Up to 5 Cycles. 30 minutes @ 121ºC |
Regulatory Compliance:
Manufactured from materials that conform to the requirements
of 21CFR Part 177 of the U.S. Code of Federal Regulations.
Polyethersulfone Capsule Filter General Specifications:
| Membrane | Hydrophilic Polyethersulfone |
| Membrane Supports | Polypropylene Microfiber |
| Housing | Polypropylene |
| Cage, Core, End Caps | Polypropylene |
| End Fittings Available | 1/4" Barb, 1.5" Sanitary Flange, 1/2" NPTM, 1/4" Barb, 1/4" NPTM, 3/8" Barb |
| Lengths Available | *Varies with connection |
| Diameter | 9 cm (3.5 in) |
| Max Operational Pressure | 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F) |
| Max Differential Pressure | 4.1 bar (60 psi) @ 21°C (70°F) |
| Max Operating Temperature | 43°C (110°F) at 2.1 bar (30 psi) |
| Autoclave | Up to 5 Cycles. 30 minutes @ 121°C |
| Flow Rate, Small | <1.9 L/min (0.5 gal/min) |
| Flow Rate, Medium | <7.5 L/min (2 gal/min) |
| Flow Rate, Large | <15 L/min (4 gal/min) |
