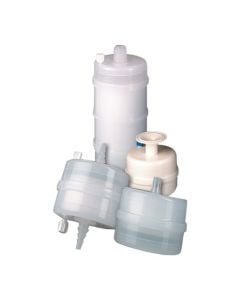

Nylon Membrane Capsule Filter, 0.45 Micron, 1/4" MNPT Inlet&Outlet, EFA: 0.8sqft, OAL: 3.5in (CMNY9408RR)
Details
Nylon Membrane Capsule Filter, 0.45 Micron, 1/4" MNPT Inlet&Outlet, EFA: 0.8sqft, OAL: 3.5in (CMNY9408RR)
- Solvents
- Fine Chemicals
- Ink Jets
- Process Water
- Beverages
- Cosmetics
- Parts Cleaning
- Electronics
- Pharaceuticals
- Biologics
- Dyes
- Lacquers
Additional Information
Sterlitech Nylon Capsule Filters may be sanitized with a variety of commonly used chemical agents; however, acidic solutions should be avoided. The capsules may be repeatedly autoclaved (121°C 30 min) for up to 5 cycles.
The materials contained in the Nylon Capsule filters meet U.S. FDA requirements for food contact under the applicable regulartions in 21 CFR.
Sterlitech filter capsules are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility.
Nylon Capsule Filter Product and Performance
Materials of Construction | |
Membrane: |
Naturally Hydrophilic Nylon 66 |
Membrane Supports: |
Polyester Microfiber |
Housing: |
Polyester |
Cage, Core, End Caps: |
Polypropylene |
Fitting Connections: | MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb |
Dimensions (Nominal) | |
Lengths Available*: |
3.5 - 5.0" (9-13 cm) |
*Varies with connection styles |
7.6 - 9.1" (19-23 cm) |
11.5 - 13.0" (29-33 cm) |
|
Diameter: |
3.5 in (9 cm) |
Effective Filtration Area: |
0.8 ft² (748 cm²) / Small 3.0 ft² (2806 cm²) / Medium 5.9 ft² (5500 cm²) / Large |
Operating Conditions | |
Max Operating Pressure: | 80 psi (5.5 bar) @ 70ºF (21ºC) in Liquid, 55 psi (3.8 bar) @ 70ºF (21ºC) in Gas |
Max Differential Pressure: | 60 psi (4.1 bar) @ 70ºF (21ºC) |
Max Operating Temperature: |
110ºF (43ºC) at ≤30 psi (2.1 bar) Operating Pressure |
Autoclave: | Up to 5 Cycles. 30 minutes @ 121ºC |
Nylon Capsule Filter General Specifications:
Membrane | Naturally Hydrophilic Nylon 66 |
Membrane Supports | Polyester Microfiber |
Housing | Polyester |
Cage, Core, End Caps | Polypropylene |
End Fittings Available | 1/4" Barb, 1.5" Sanitary Flange, 1/2" NPTM, 1/4" Barb, 1/4" NPTM, 3/8" Barb |
Lengths Available | Varies with connection style |
Diameter | 9 cm (3.5 in) |
Max Operational Pressure | 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F) |
Max Differential Pressure | 4.1 bar (60 psi) @ 21°C (70°F) |
Max Operating Temperature | 43°C (110°F) at 2.1 bar (30 psi) |
Autoclave | Up to 5 Cycles. 30 minutes @ 121°C |
Flow Rate, Small | <1.9 L/min (0.5 gal/min) |
Flow Rate, Medium | <7.5 L/min (2 gal/min) |
Flow Rate, Large | <15 L/min (4 gal/min) |
