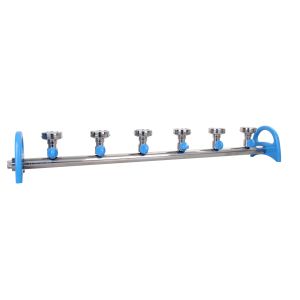

MultiVac 600-MB, 6-Branch Stainless Steel Manifold w/ Rocker SF funnel adaptor
Powered by Bioz
180600-02
Rocker
Stainless Steel
2-Way
1-2 days
Features
- Quick-assembly and disassembly
Each component can be easily removed for cleaning and autoclaving . - SS316 stainless steel
All wetted parts of the MultiVac manifold are made of SS316 stainless steel, which is more durable. - Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source. - Innovative vent valve design
Adjustable vent valve eliminates water hammer phenomenon and helps drain residual liquid in pipe. - Individual control valve
Control feeds of each filter holder individually. - Use with ROCKER SF funnels
These stainless steel 316 funnels can be sterilized with flame and made this system super handy for microbiological tests.
MultiVac Vacuum Filtration Manifold Specification
| Number of branch | 3 or 6 |
| Filter diameter | 47 mm |
| Funnel capacity | 100 ml / 300 ml / 500 ml (optional) |
| Hose barb | ID8 (5/16 inch) |
| Dimension (LxWxH) | 48 x 13 x 11 cm |
| Material | |
| Body | SS316 |
| Control valve | SS316 |
| Adaptor | SS316 |
| Membrane suppor | SS316 |
| Hose barb / Vent valve | SS316 |
| Handle / Knob | Aluminum |
Multi-Branch Manifold Applications
- Microbiological test
- Suspended solid test
- Vacuum filtration
