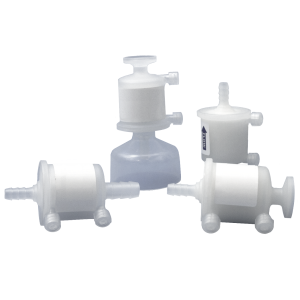

JKL Junior Capsules
Our Junior capsule filter assemblies are ready-to-use filters that offer high flows, increased throughputs, high strength, all with the convenience and cleanliness of a disposable and easy-to-install filter assembly in a small package. Designed for small pre-filtration, clarification, and final filtration, in pharmaceutical, biotechnology, food and beverage, medical, chemical, and DI water applications.
Details
Details:
These Junior capsule assemblies are available with a wide range of hydrophilic and hydrophobic filter medias and pore sizes for liquid, gas, and venting applications. Process engineers can choose from 13 filtration medias to create any combination of integrated filtration. These will allow the disposable processing to become truly flexible, clean, and optimal. Also available with no media.
They can be built with several configurations, with 10 inlet and 12 outlet fitting connections that can be mixed and matched. The filtration shell is an all-polypropylene construction that provides excellent chemical compatibility with low extractables. The shell and supports can also be constructed in nylon, polyethylene, or gamma stabilized PP shells for additional compatibility. No adhesives, binders, or surfactants are used in the manufacturing process.
Specifications:
Materials of Construction:
- Media: Charged Nylon, Depth PP, Polyethylene, PTFE, Glass Fiber, PP Membrane, Nylon,
- Nylon Screen, PP media, PES, and Polyester Screen
- Media Supports: Media Dependent
- Shell, Cage, Core, End Caps: Polypropylene, Nylon, or HDPE
- Sealing: Thermally bonded
Fitting Connections: Five Fittings – See Ordering Guide for availability. (Custom adapters available upon request.)
Nominal Dimensions:
- Lengths: 1.6” (41mm) without fittings
- Diameter: 1.6” (41mm)
Effective Filtration Area: 260cm2 for single layer membrane, 230cm2 for double layer membrane. 200cm2 for Depth and Screen Media
Available Ratings: 0.04um – 200.0um (Dependent on Media)
Operating Conditions:
- Maximum Operating pressure:Minimum Burst Pressure: 8.3 bar (120psi) at 72°F/22°C
- Liquid: 5.5 bar (80psi) at 72°F/22°C
- Gas: 4.1 bar (60psi) at 72°F/22°C
- Maximum Forward Differential Pressure: 5 bar (72psi) at 72°F/22°C
- Maximum Reverse Differential Pressure: 2.1 bar (30psi) at 72°F/22°C
- Maximum Operating Temperature: PP & Gamma PP: 176°F/80°C
- HDPE: 140°F/60°C
Applications:
- Clarification
- Water & Wine
- Hard Particle
- Food & Beverages
- Cell Removal
- Pharmaceuticals
- Chemicals
- Biologics
- Inks, Dyes
- Oils, Waters
- Cosmetics
- Diagnostics
Custom Capsule/Cartridge Filter Specifications and Fact Sheets:
| Filter Information | Diameter |
| Junior Capsules | 41 mm |
| Junior Cartridges | 29 mm |
| SKV Series PES Filter Capsules | 70 mm |
| RD65 Series Filter Capsules | 65 mm |
| SKS Series Filter Capsules | 71.5 mm |
| SKL Series PTFE Filter Capsules | 73 mm |
| D90R Filter Capsules | 90 mm |
