Glass Fiber Media Capsule Filter, 3.0 Micron, 1/4" MNPT Inlet&Outlet, EFA: 0.5sqft, OAL: 3.5in (CFGF0305RR)
1470150
Sterlitech
3
0.5
3.5
Details

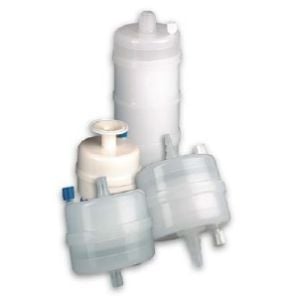

Glass Fiber Media Capsule Filter, 3.0 Micron, 1/4" MNPT Inlet&Outlet, EFA: 0.5sqft, OAL: 3.5in (CFGF0305RR)
Glass Fiber Capsule Filter Applications:
- Broad chemical compatibility
- Meets FDA requirements for food contact
- General prefiltration
- Severe particle loads
- Cosmetics, beverages, paints, and coatings
Glass Fiber Capsule Filter Specifications:
| Membrane | Glass Microfiber (acrylic resin-bonded) |
| Membrane Supports | Polypropylene Microfiber |
| Housing | Polypropylene |
| Cage, Core, End Caps | Polypropylene |
| End Fittings Available | Hose barb, sanitary flange, or MNPT end-fittings |
| Lengths Available | Varies with connection |
| Filtration Area | 0.5, 1.9, and 3.7 sq. ft. |
| Diameter | 9 cm (3.5 in) |
| Max Operational Pressure | 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F) |
| Max Differential Pressure | 4.1 bar (60 psi) @ 21°C (70°F) |
| Max Operating Temperature | 43°C (110°F) at 2.1 bar (30 psi) |
| Autoclave | Up to 5 Cycles. 30 minutes @ 121°C |
| Flow Rate*, Small | <1.5 L/min (0.4 gal/min) |
| Flow Rate, Medium | <5.0 L/min (1.5 gal/min) |
| Flow Rate, Large | <11 L/min (3 gal/min) |
*Measured at 1 psid (69 mbar)
