D90 Capsule Filters

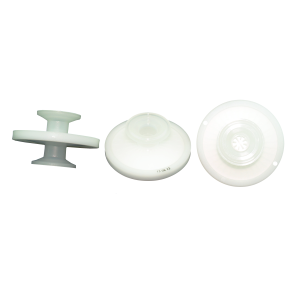

D90 Filter Capsules (90mm diameter) have been designed for simple, quick, and efficient filtration of fluids and gases used in laboratory, pilot, and small-scale applications. The family of products is particularly suitable for scale up testing. Thirteen different media options can be placed in an all-polypropylene construction for excellent chemical compatibility. There are 28 different fitting options that can be mixed and matched for the inlet and outlet fittings.
The compact design of the filter capsule also reduces hold-up volume and exposure to hazardous chemicals. No adhesives or binders are used in the encapsulation process. The unit is thermally-sealed to ensure integrity.
Details
Specifications:
Materials of Construction
- Media Options: Nylon, PTFE, Polyethylene, Glass Fiber, and PES
- Media Supports: Media Dependent
- Construction Materials: Polypropylene, Nylon, or Polyethylene
- Sealing: Thermally-welded
Fitting Connections: See ordering guide for the availability. Any inlet/outlet combinations. (Custom adaptors available upon request)
Dimensions: 90 mm (3.5 in)
Effective Filtration Area: Area: 9.3 in2 (60 cm2)
Sterilization Methods:
The filters can be sterilized by autoclaving for 10 cycles at 257°F/125°C for 30 minutes. Polyethylene material can not be autoclaved. Note: Capsules must not be in situ steam-sterilized.
Custom Capsule/Cartridge Filter Specifications and Fact Sheets:
| Filter Information | Diameter |
| Junior Capsules | 41 mm |
| Junior Cartridges | 29 mm |
| SKV Series PES Filter Capsules | 70 mm |
| RD65 Series Filter Capsules | 65 mm |
| SKS Series Filter Capsules | 71.5 mm |
| SKL Series PTFE Filter Capsules | 73 mm |
| D90R Filter Capsules | 90 mm |
