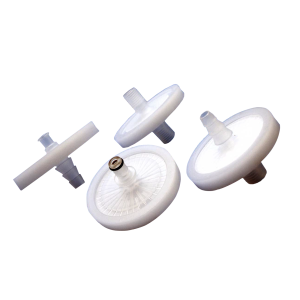

D50 Syringe Filters
These D50 Filter Capsules have been designed for simple, quick, and efficient filtration of fluids used in laboratory and analytical small-scale applications. Ten different media options can be placed in an all- polypropylene construction for excellent chemical compatibility. The small compact design of the filter capsule also reduces hold-up volume and exposure to hazardous liquids. No adhesives, binders, or surfactants are used in the manufacturing process. The filters are thermally sealed to insure integrity.
Details
Specifications:
Materials of Construction
- Membrane: Nylon, Nylon Screen, Polyethylene, PES, Polypropylene Membrane, Polypropylene Media, Hydrophobic and Hydrophilic PTFE
- Membrane Supports: Media dependent
- Capsule Body: Polypropylene (standard)
Fitting Connections: Luer Lock, Luer Slip, Hose Barb, Compression, NPT, Quick Couplings
Effective Filtration Area: 2.5in2 (15.9 cm2)
Autoclave Cycles: 10 times @ 257°F/125°C for 30 minutes Capsules must not be in situ steam-sterilized
Regulatory Compliance: The discs are manufactured from materials that conform to the requirements of 21CFR Part 177 of the U.S. Code of Federal Regulations. Medias and Membranes are also in compliance with the USP Class VI Biological Test for Plastics. (Except Black PP
Bacterial Endotoxin: Effluent is non-pyrogenic per USP Bacterial Endotoxin (0.25 EU/ml), determined using Limulus Amebocyte Lysate (LAL) Test.
Custom Syringe Filter Fact Sheets:
| Filter Information | Diameter |
| D4 Syringe Filters | 4 mm |
| D13 Syringe Filters | 13 mm |
| D25C Syringe Filters | 25 mm |
| D40C Syringe Filters | 40 mm |
| D50 Syringe Filters | 50 mm |
| G50 Syringe Filters (gas filtration/venting) | 50 mm |
| D65 Syringe FIlters | 65 mm |
