D25 Syringe Filters

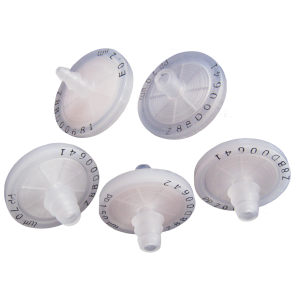

Our D25 Filter Capsules (25mm diameter) have been designed for simple, quick, and efficient filtration of fluids and gases used in laboratory, pilot, and small scale applications. 12 different media options can be placed in an all-polypropylene construction for excellent chemical compatibility with 10 different fittings. The small compact design of the filter capsule also reduces hold-up volume and exposure to hazardous chemicals. No adhesives, binders, or surfactants are used in the manufacturing process. The unit is thermally-sealed to ensure integrity.
D25
Sterlitech
25
Contact Us
Details
Specifications:
- Materials of Construction:
- Membrane: Nylon 6,6, Nylon Screen Polyethylene, PES, Polypropylene Membrane, Polypropylene Media, and Hydrophobic PTFE, Stainless steel
- Membrane Supports: Media Dependent
- Capsule Body: Polypropylene
- Fitting Connections: Luer Lock, Luer Slip, Hose Barb, Compression , NPT, Quick Coupling
- Effective Filtration Area: 0.7in2 (4.6 cm2)
- Autoclave Cycles: 10 times @ 257°F/125°C for 30 minutes capsules must not be in situ steam-sterilized
- Regulatory Compliance: The discs are manufactured from materials that conform to the requirements of 21CFR Part 177 of the U.S. Code of Federal Regulations. Medias and Membranes are also in compliance with the USP Class VI Biological Test for Plastics. (Except Black PP and PVC)
- Bacterial Endotoxin: Effluent is non-pyrogenic per USP Bacterial Endotoxin (0.25 EU/ml), determined using Limulus Amebocyte Lysate (LAL) Test.
Applications:
- Point of use, low flow filtration
- Sample and Small Batch Clarification and Filtration
- Low hold up volume required application
- Laboratory
- Syringe filter
- Sample and Small Batch Preparation and Clean-Up
- Filter Media selection
- Small scale Filtration testing
Custom Syringe Filter Fact Sheets:
| Filter Information | Diameter |
| D4 Syringe Filters | 4 mm |
| D13 Syringe Filters | 13 mm |
| D25C Syringe Filters | 25 mm |
| D40C Syringe Filters | 40 mm |
| D50 Syringe Filters | 50 mm |
| G50 Syringe Filters (gas filtration/venting) | 50 mm |
| D65 Syringe FIlters | 65 mm |
