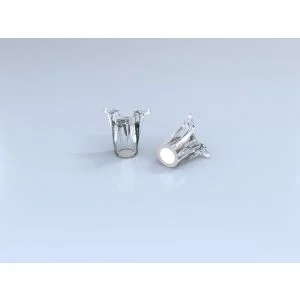

cellQART 24-Well Cell Culture Insert PET, 1.0um, Translucent, 48/pk

Special Price $187.86 Regular Price $250.48

Quantity:

- +

Add to Wish List

SKU: 9321002-D

Brand: CellQart

Est Ship: 1-2 days

Features & Specifications

Ease of use by convenient pipette access (patented design since 2011)
Optimized gas exchange by product design
Compatible to standard well-plates
Industry leading quality standards to ensure membrane parameter consistency (important for consistent cell culture results)
RNase/DNase Free and Non-pyrogenic
DIN EN ISO 9001 and DIN EN ISO 13485 certified

Wide window of cellQART^® Cell Culture Insert for comfortable pipette access

Asymmetric positioning of cellQART^® Cell Culture Inserts …

… for comfortable pipette access to the cultivation vessel.

Lowered top edge for better pipette access to the cultivation vessel.

Lowered top edge and embossed spots on arms for better gas exchange.

≥ 1 mm space between cellQART^® Cell Culture Inserts and bottom of cultivation vessel.

	Growth Area	Membrane Optics	Pore Size	Pore Density per cm²	Membrane Thickness	Quantity per box
6-Well Insert PET	4.5 cm²	Translucent	0.4 µm	100 x 10⁶	11.5 ± 2.0 µm	48 Inserts
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	2 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.2 x 10⁶	12.5 ± 3.0 µm
		Clear Extended Culture	0.4 µm	4 x 10⁶	11.5 ± 2.0 µm
		Clear	0.4 µm	2 x 10⁶	11.5 ± 2.0 µm
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	0.6 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.1 x 10⁶	12.5 ± 3.0 µm
12-Well Insert PET	1.1 cm²	Translucent	0.4 µm	100 x 10⁶	11.5 ± 2.0 µm	48 Inserts
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	2 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.2 x 10⁶	12.5 ± 3.0 µm
		Clear Extended Culture	0.4 µm	4 x 10⁶	11.5 ± 2.0 µm
		Clear	0.4 µm	2 x 10⁶	11.5 ± 2.0 µm
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	0.6 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.1 x 10⁶	12.5 ± 3.0 µm
24-Well Insert PET	0.3 cm²	Translucent	0.4 µm	100 x 10⁶	11.5 ± 2.0 µm	48 Inserts
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	2 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.2 x 10⁶	12.5 ± 3.0 µm
		Clear Extended Culture	0.4 µm	4 x 10⁶	11.5 ± 2.0 µm
		Clear	0.4 µm	2 x 10⁶	11.5 ± 2.0 µm
			1.0 µm	2 x 10⁶	11.0 ± 2.0 µm
			3.0 µm	0.6 x 10⁶	9.0 ± 2.0 µm
			5.0 µm	0.6 x 10⁶	10.5 ± 2.5 µm
			8.0 µm	0.1 x 10⁶	12.5 ± 3.0 µm

Application	Cell Type	Pore size recommendation (um)
Angiogenesis	Endothelial, HMVEC, HUVEC	3.0
Co-culture	Stem, neuronal and various others	0.4, 1.0
Epithelial cell polarity	Epithelial cells	0.4
Invasion	Melanoma	8.0
	Glioma	8.0
	Lymphoma, Jurkat	5.0, 8.0
	Osteoblasts	8.0
	Breast Cancer	5.0, 8.0
	Endothelial	3.0, 5.0, 8.0
Migration	Endothelial, HMVEC, HUVEC	3.0
	Neutrophils, PMNs	3.0
	Lymphocytes, macrophages, monocytes	3.0, 5.0
	Neuronal cells	3.0
	Dendritic cells	3.0, 5.0, 8.0
	Neurite outgrowth	1.0, 3.0
	Epithelial fibroblasts	8.0
	Leukocytes	3.0, 5.0
	Smooth muscle	8.0
Tissue engineering	Human skin model	0.4, 3.0
Toxicity testing	Mouse fibroblasts	3.0
Toxicity testing	Human lung	0.4
Transport and permeability studies	Caco-2, MDCK	0.4, 1.0
