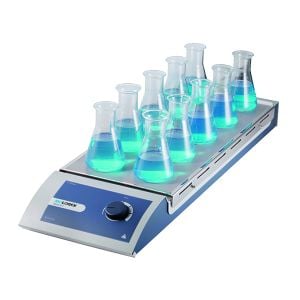

SCILOGEX MS-M-S10 Analog Magnetic Stirrer 10-Channel, s/steel plate, 110V/60Hz
The SCILOGEX MS-M-S10 10-place multiposition stirrer features a powerful rotary drive providing consistent sample conditions across each position for volumes up to 400 mL. The stirrer surface is stainless steel with a silicone anti-slip mat which is chemical resistant and easy-to-clean.
81131102
SCILOGEX
Sterlitech
Scilogex
MS-M-S10
Stirrer (Analog)
110V/60Hz
5-7 days
Details
SCILOGEX MS-M-S10 Analog Magnetic Stirrer 10-Channel, s/steel plate, 110V/60Hz
Specifications
Hotplate/Stirrer Performance Comparison by Manufacturer: Scilogex Stirrers | Scilogex Hotplate-Stirrers | Benchmark
Scilogex Stirrers
MS-S |
MS-PA |
MS-PB |
MS-M-S10 |
|
---|---|---|---|---|
Dimension of work plate [mm] | ø135 (5") | ø135 (5") | ø135 (5") | 180 × 450 |
Work plate material | Ceramic-coated steel | ABS Plastic | ABS Plastic | S/steel w/silicone film |
Motor type | DC brushless | DC | DC | DC brushless |
Motor rating input [W] | 18 | 5 | 5 | 12 |
Motor rating output [W] | 10 | 3 | 3 | 4 |
Power [W] | 30 | 15 | 10 | 20 |
Voltage [VAC] | 100-240 | 100-240 | 100-240 | 100-240 |
Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
Stirring positions | 1 | 1 | 1 | 10 |
Max. stirring quantity[H2O] L | 20 | 3 | 3 | 0.4 (ea. position) |
Max. magnetic bar(L × Ø) mm | 80 | 50 | 50 | 40 |
Speed Range [rpm] | 0-1500 | 100-1500 | 0-1500 | 0-1100 |
Speed display | Scale | LED | Scale | Scale |
Speed display resolution [rpm] | N/A | N/A | N/A | N/A |
Protection class [DIN EN60529] | IP42 | IP42 | IP42 | IP42 |
Dimension [W × D × H] mm | 160 × 280 × 85 | 150 × 260 × 80 | 150 × 260 × 80 | 182 × 552 × 65 |
Weight [kg] | 2.8 | 1.8 | 1.8 | 3.2 |
Max. Temperature [°C] | 340 | 280 | 280 | NA |
Permissible Relative Humidity | 80% | 80% | 80% | 80% |
Scilogex Hotplate-Stirrers:
MS7-H550-Pro |
S7-H550-S |
MS-H-Pro+ |
MS-H-S |
MS-H280-Pro |
MS-H-S10 |
|
---|---|---|---|---|---|---|
Work Plate Dim. [mm] | 184 × 184 (7") | 184 × 184 (7") | ø135 (5") | ø135 (5") | ø135 (5") | 180 × 450 |
Work plate material | Glass-ceramic | Glass-ceramic | Ceramic-coated steel | Ceramic-coated steel | Ceramic-coated steel | S/steel w/silicone film |
Motor Type | DC brushless | Shaded pole | DC brushless | DC brushless | DC | DC brushless |
Motor Rating Input [W] | 18 | 15 | 18 | 18 | 5 | 12 |
Motor Rating Output [W] | 10 | 1.5 | 10 | 10 | 3 | 4 |
Power [W] | 1050 | 1030 | 550 | 530 | 515 | 490 |
Voltage [VAC] | 100-120/200-240 | 100-120/200-240 | 100-120/200-240 | 100-120/200-240 | 100-120/200-240 | 100-120/200-240 |
Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Stirring Positions | 1 | 1 | 1 | 1 | 1 | 10 |
Max. Stirring Quantity[H2O] L | 20 | 10 | 20 | 20 | 3 | 0.4 (ea. position) |
Max. Magnetic Bar(L × Ø) mm | 80 | 80 | 80 | 80 | 50 | 40 |
Speed Range [rpm] | 100-1500 | 0-1500 | 100-1500 | 0-1500 | 100-1500 | 0-1100 |
Speed Display | LCD | Scale | LCD | Scale | LED | Scale |
Speed Display Resolution [rpm] | +-1 | N/A | +-1 | N/A | N/A | N/A |
Protection Class (DIN EN60529) | IP21 | IP21 | IP42 | IP42 | IP21 | IP42 |
Dimensions [W × D × H] mm | 215 × 360 × 112 | 215 × 360 × 112 | 160 × 280 × 85 | 160 × 280 × 85 | 150 × 260 × 80 | 182 × 552 × 65 |
Weight [kg] | 5.3 | 4.5 | 2.8 | 1.8 | 1.8 | 3.2 |
Max. Temperature [°C] | 550 | 550 | 340 | 340 | 280 | NA |
Permissible Relative Humidity | 80% | 80% | 80% | 80% | 80% | 80% |
Heating output [W] | 1,000 | 1,000 | 500 | 500 | 500 | 470 |
Safety Temp. [°C] | 580 | 580 | 360 | 350 | 320 | 140 |
Temp. Display | LCD | LED | LCD | Scale | LED | Scale |
Benchmark Stirrers, Hotplates, and Hotplate-Stirrers:
H4000 Stirrer |
H4000 Hotplate |
H4000 Hotplate-Stirrer |
|
---|---|---|---|
Work Plate Dim. [mm] | 7.5 × 7.5" | 7.5 × 7.5" | 7.5 × 7.5" |
Work Plate Material | Ceramic | Ceramic | Ceramic |
Voltage [VAC] | 100-120/200-240 | 100-120/200-240 | 100-120/200-240 |
Frequency [Hz] | 50/60 | 50/60 | 50/60 |
Stirring Positions | 1 | N/A | 1 |
Speed Range [rpm] | 60-1500 | N/A | 60-1500 |
Speed Display | Analog | N/A | Analog |
Dimensions [W × D × H] | 8 × 9 × 4.5" | 8 × 9 × 4.5" | 8 × 9 × 4.5" |
Ambient Temp. Range [°C] | +5-380 | +5-380 | +5-380 |
Control | Quick Adjustment Knob | Quick Adjustment Knob | Quick Adjustment Knob |
