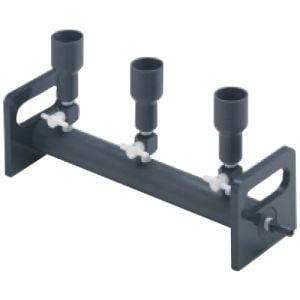

PVC Vacuum Manifold, 3-Position, Standard Cup, 2-Way Valve, KMP3
SKU
313400
Manufacturer
Advantec
Material Type
PVC
Cup
Standard Cup
Valve
2-Way
Details
PVC Vacuum Manifold, 3-Position, Standard Cup, 2-Way Valve, KMP3
Applications
- Multiple sample filtration
- Ideal for EPA Method 1664: Oil & Grease Analysis
- Detecting and enumerating bacteria using EPA membrane filter (MF) technique
Specifications
|
|
|
|
|
|
|---|---|---|---|---|
|
Number of stations |
1 |
3 |
3 |
6 |
|
Body & branches |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
|
Valves |
PTFE stopcock, PVC body |
PTFE stopcock, PVC body |
PTFE stopcock, PVC body |
PTFE stopcock, PVC body |
|
Cup type |
Exterior taper |
Exterior taper |
Standard |
Standard |
|
Outlet |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
|
Max Temp. |
60 C (140 F) |
60 C (140 F) |
60 C (140 F) |
60 C (140 F) |
|
Distance between stations |
N/A |
6.5” |
5.5” |
4.75” |
Documentation
Data Sheet: PVC Manifolds
