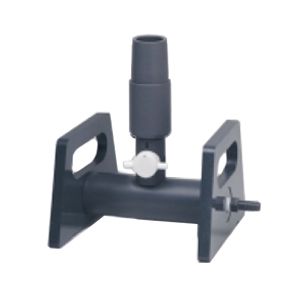

PVC Vacuum Manifold, 1-Position, Exterior Taper Cup, 3-Way Valve, KMX1
Vacuum Manifolds (PVC and Stainless Steel)
SKU
373130
Manufacturer
Advantec
Material Type
PVC
Cup
Exterior Cup
Valve
3-Way
Details
PVC Vacuum Manifold, 1-Position, Exterior Taper Cup, 3-Way Valve, KMX1
Applications
- Multiple sample filtration
- KM3 and KM6 with standard cup are designed to perform sterility testing (USP bacteria retentive method)
- Detecting and enumerating bacteria using EPA membrane filter (MF) technique
Rocker Manifold Table
| 301-MS | 301-MB | 300-MB | 300-MS | 601-MB | 601-MS | 600 | |
|---|---|---|---|---|---|---|---|
| Number of Stations | 3 | 3 | 3 | 3 | 6 | 6 | 6 |
| Body & Branches | Aluminum | 316 SS | 316 SS | 316 SS | 316 SS | Aluminum | 316 SS |
| Valves | Aluminum | 316 SS | 316 SS | 316 SS | 316 SS | Aluminum | 316 SS |
| Cup Type | Standard Cup, 2-Way Valve | 100-mL funnel, 2-Way Valve | Funnel Adaptor, 2-Way Valve | Standard Cup, 2-Way Valve | Standard Cup, 2-Way Valve | Standard Cup, 2-Way Valve | NA, 2-Way Valve |
Specifications
|
|
SS |
KM3 |
KM6 |
|---|---|---|---|
|
Number of stations |
1 |
3 |
6 |
|
Body & branches |
304 Stainless steel |
304 Stainless steel |
304 Stainless steel |
|
Valves |
PTFE stopcock, chrome-plated brass body |
PTFE stopcock, chrome-plated brass body |
PTFE stopcock, chrome-plated brass body |
|
Cup type |
Standard or Exterior taper, 2 or 3-way valves |
Standard or Exterior taper, 2 or 3-way valves |
Standard or Exterior taper, 2 or 3-way valves |
|
Outlet |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
¼” MNTP to hose barb (connects to 3/8” ID vacuum tubing) |
|
Max Temp. |
60 C (140 F) |
60 C (140 F) |
60 C (140 F) |
|
Distance between stations |
N/A |
5.5” |
4.75” |
