SKU: 740560-1

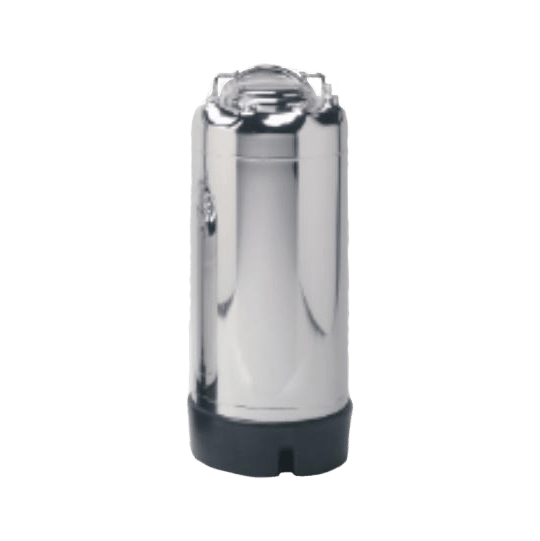

5-Gal 316SS Pressure Vessel (includes: pressure gauge, safety relief valve, hose barb connectors (3/8" OD tubing), tubing, hose clamp, dip tube)

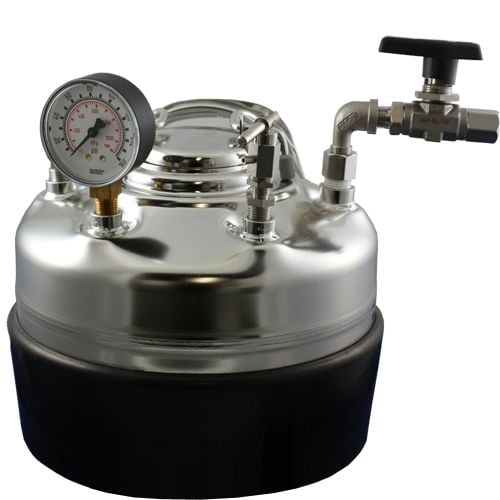

All Sterlitech stainless steel pressure filtration vessels include a pressure gauge, safety relief valve, ball valve, elbows, hose barb connectors (3/8" OD tubing) and a dip tube. See the accompanying picture for reference.
$2,391.35
Key Specifications
- Volume
- 5 Gallon
- Opening
- Oval Top
- Material Type
- 316 Stainless Steel
- Brand
- Sterlitech

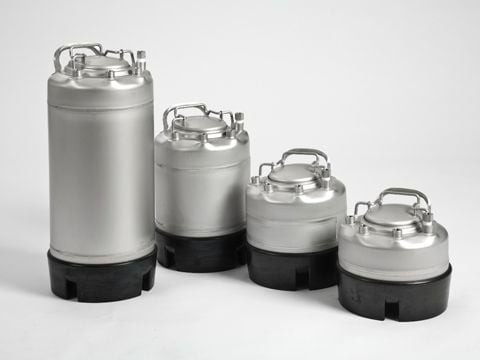

Pressure Filtration Vessel Comparison
| Series |  |
 |
 |
 |

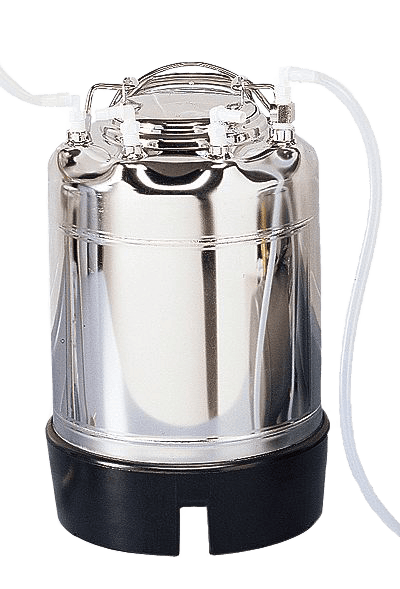

| Product Name | 740160-1 | 740360-1 | 740560-1 | 740060-1 |
| Volume (US Gal) | 1 | 3 | 5 | 10 |
| Volume (Liters) | 3.78 | 11.3 | 18.9 | 37.8 |
| Materials | ||||
| Vessel | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel | 316 SS |
| Skirt | Molded Neoprene Rubber | Molded Neoprene Rubber | Molded Neoprene Rubber | 316 SS |
| Inlet/Outlet | 1/4” NPTF | 1/4” NPTF | 1/4” NPTF | 1/4” NPTF |
| Closure | 3 7/8” x 1 1/4” | 3 7/8” x 1 1/4” | 3 7/8” x 1 1/4” | 3 7/8” x 1 1/4” |
| Dimensions | ||||
| Overall Height | 8.5” | 15.25” | 22.5” | 24.9” |
| Inside Diameter | 9” | 9” | 9” | 12” |
| Max Temp (°F) @ Max Pressure (psi) | 300 @ 150 | 300 @ 150 | 300 @ 150 | 300 @ 110 |
| Recommended Filter Holders | KS 90 KS 90 ST KS 90 UH |
KS 142 KS 142 ST KST 142 UH |
KS 142 KS 142 ST KST 142 UH |
KS 293 KS 293 ST KS 293 UH |
Max Operating Temp and Pressures
| Maximum Operating Temperature | Pressures | ||
|---|---|---|---|
| °F | °C | psi | Bar |
| 100 | 38 | 165 | 11.4 |
| 200 | 93 | 165 | 11.4 |
| 300 | 149 | 155 | 10.7 |
Maximum operating temperature and pressure may be limited by vent relief valve maximum pressure, O-ring maximum temperature, rubber skirt maximum temperature, or other factors.
Note: Cells are not autoclavable.
